Product Details:
Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-107
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Keypad Button: PET Connector: 2 Male Connector Cable
Type: Metal Dome Membrane Switch Feasure: Embossed And Tactile
Back Adhesive: 3M467MP Brand Name: Zhongshan
High Light:

key membrane switch

,

custom membrane switches

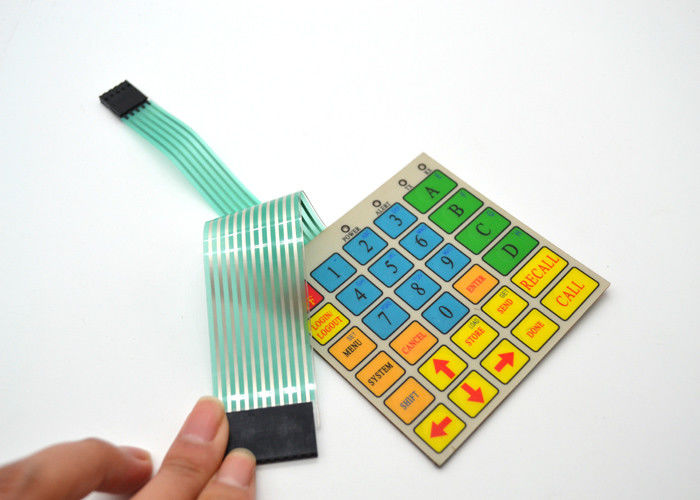

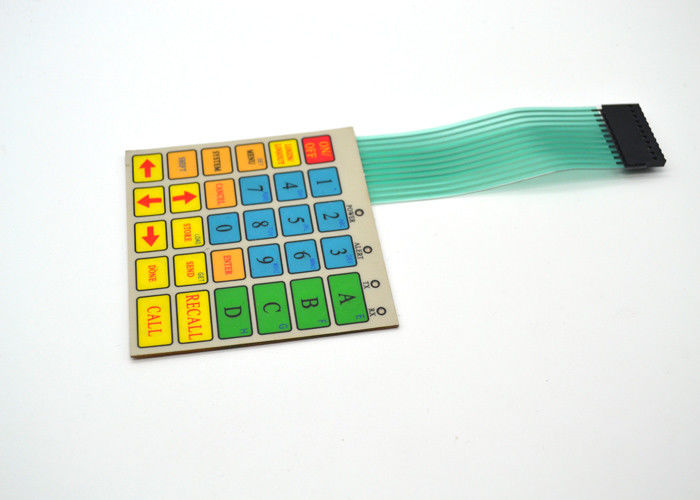

Membrane switch embossed key type with tactile / ZS-107 / Two male

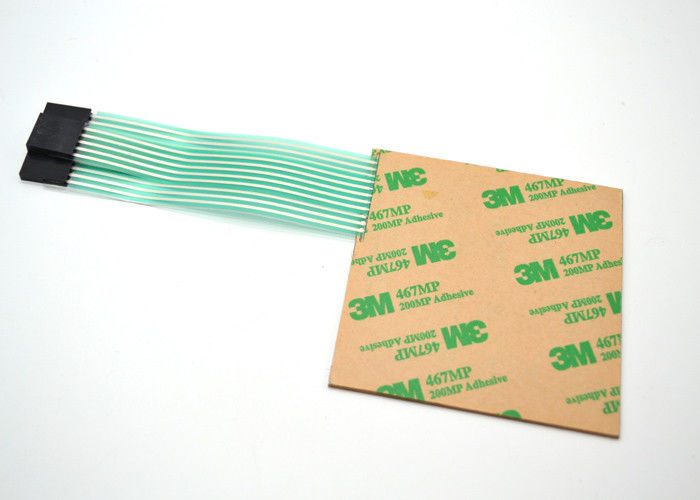

connector cable tail with 3M467MP back adhesive





Product Description





Membrane switch design





Material



PET(polyester),PC(polycarbonate)



Dimension



80*80mm



Color



Pantone and RALcolor matching system.



Rear Adhesive



3M467,3M468,3M9448 ect
Features



1)with metal dome,





2)Key:embossed or flat





3)screen printing





4)glossy surface or matte surface





6)Standard Tolerances:+/- 0.10inch(+/-0.25mm)





Best service + best price+best quality







Membrane Switch description





Physical Parameter



Membrane keypad --Non-tactile Membrane keypad--Tactile



Nominal actuation force



4-12 ounces 8-20 ounces



Actuation force tolerance



3 ounces 4 ounces



Rebound time



.006″ to .012″ .020″ to .030″



Switch life



10 million 10 million





Electric Parameter





Membrane keypad --Non-tactile Membrane keypad--Tactile



Contact rating



50VDC,100mA 50VDC,100mA



Contact bounce



≤20ms ≤20ms



Environment



Membrane keypad --Non-tactile Membrane keypad--Tactile



Storage Temperature



-40°C-+85°C -40°C-+85°C



Operation Temperature



-30°C-+60°C -30°C-+60°C



Flat / Embossed Tactile Membrane Keypad , Push Button Membrane Switch 0Flat / Embossed Tactile Membrane Keypad , Push Button Membrane Switch 1







Our Services



1. 100% manufacturer



2. Best material selection,all our goods are made of best materials which have the SGS



    certificate from the best suppliers.



3. Quality control: every single piece of product, every production, procedure is inspected and



    controlled before packing the goods into export carton. We ensure every of product



    shipped are of good quality.



4. After sales service is necessary for more understanding for your needs. We do keep a close concern.
