| Place of Origin: | jiangsu(China mainland) |
| Brand Name: | Zhongshan |
| Certification: | ROHSISO9001,2000 |
| Model Number: | ZS-117 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer detail requirements |
| Delivery Time: | within one week after receiving order payment |
| Payment Terms: | 30% deposit, the 70% balance after shipment or full payment before air transportaion |
| Supply Ability: | 50000 pieces per week |
| Application: | Network Irrigation Controller | Place Of Origin: | Jiangsu(China Mainland) |
|---|---|---|---|
| Printing: | Screen Printing | Size: | 110*110mm |

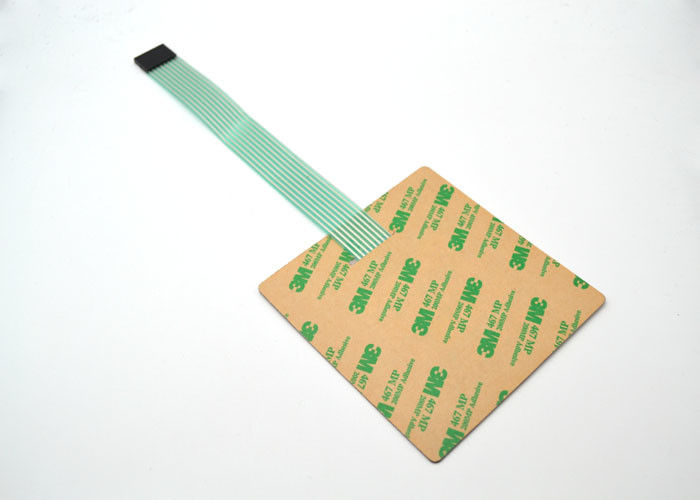

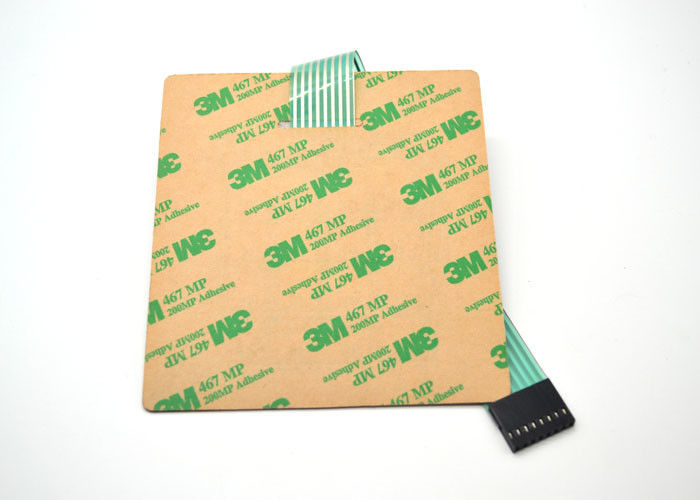

| Back Adhesive: | 3M467MP | Type: | Metal Dome Membrane Switch |
| High Light: | membrane switch keypad,membrane switch panel |
||

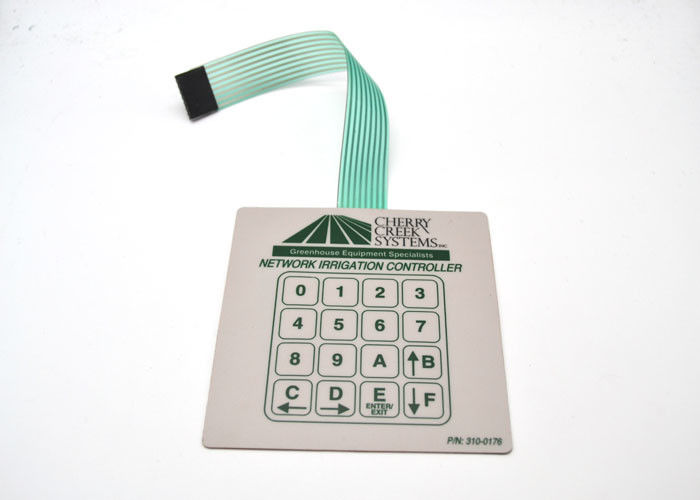

Network Irrigation Controller metal dome membrane switch / ZS-117 /
Embossed tactile and color printing on the surface
| Environmental | Operating | -20° to 65° C (-4° to 149° F) |
Storage | -40° to 85° C (-40° to 185° F) | |
| Seals | 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions. | |
| ||
| Mechanical | | .007 inches to .015 inches |
| 4oz to 8oz | |
| Electrical | | 30 volts maximum |
| Operating Current | 10 microamps to 100 milliamps, resistive | |
| Closed Circuit Resistance | 100 ohms typical, dependent on size and layout | |
| Open Circuit Resistance | 10 megohms | |
| Operating Power | 1 watt maximum | |

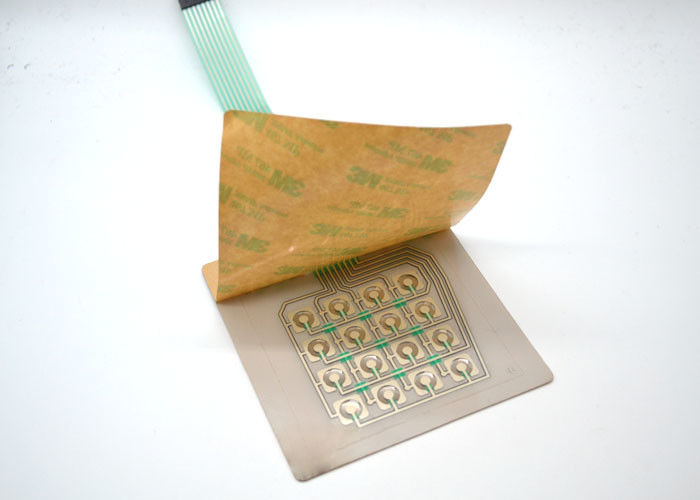

| Circuitry | X-Y matrix or one side common | |
We have the capacity to provide F150 PET Shield/ flat/ embossed push button keypad
membrane switch with translucent red LCD window, membrane switch panel with other
special requirements, such as Shielding, Windows/Lens Coating, Embossed button, Embossed
LEDs, UV glossy/matte/textured, EL,LED backlight,rubber keypad, FPC keypad, PCB keyboard
etc.
Industrial: Industrial Equipment, Vehicle Navigation, Automotive Machine, Army Command
System, Security System, POS
