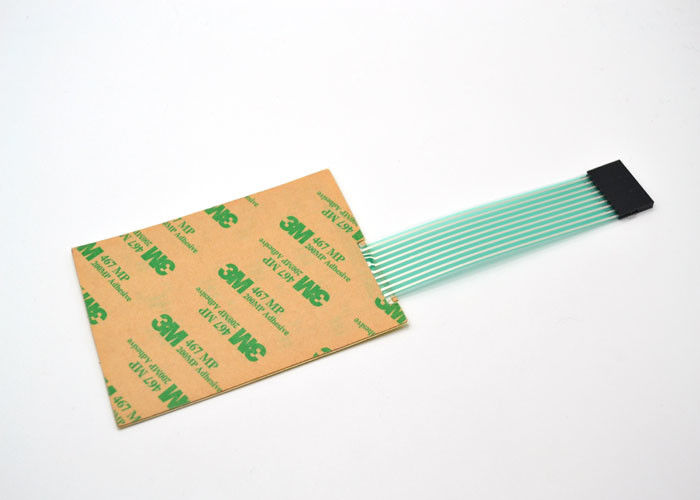

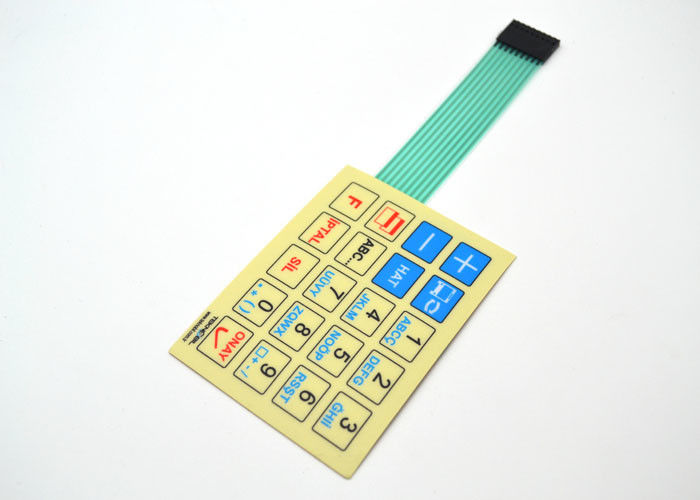

Custom cnc membrane keypad push button membrane / ZS-118 /with
3M467MP back adhesive and a 2.44m connector cable tail
Product Description
|
1
|
Material
|
PET(polyester) ,PC(polycarbonate)
|
|
|
2
|

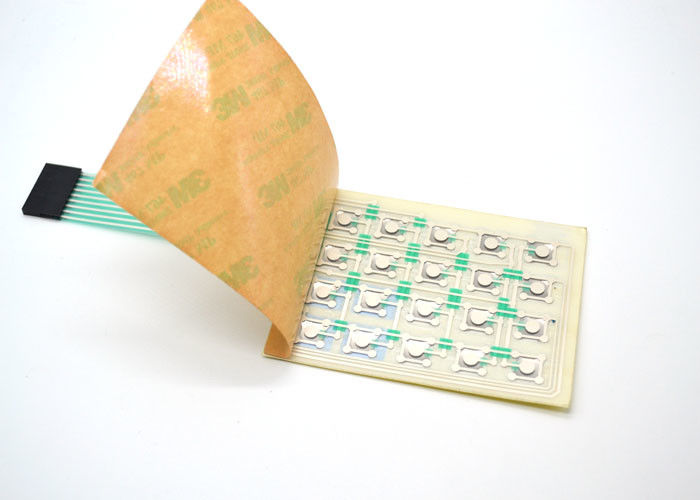

Components
|
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
|
|
|
3
|
Embossing
|
1.raises the surface of graphic overlay to emphasize the active key
area,upper circuit can be embossed to insert metal domes
2.Embossed type: Pillow emboss, Dome emboss, Frame emboss |
|
|
4
|
Color
|
Pantone and RALcolor matching system.
|
|
|
5
|
Keys
Options
|
1.For a tactile response and indicate the location of switches 2. Tactile Keys:
metal domes or poly domes
3. Non-tactile keys: flat button, printed silver spot on the circuit
|
|
|
6
|
Cables
|
The extension of circuit and communication with your device
|
|
|
7
|
Circuitry
option
|
1. Silver printed conductive inks 2. Copper etched circuit /Polyimide Kapton
circuit ( FPC) 3.PCB circcuit board
|
|
|
8
|
Connector
Tail
|
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch 2. Female
connector with 2.54MM pitch
|
|
Membrane switch Structure
1.Graphic Overlay – PET/PC is usually the material of choice due to its superior chemical
resistance and flex life . MEIBORUI can either digitally print, screen-print, or employ a
combination of both methods to ensure you get the right colors, textures and finishes your
design requires.
2. Overlay Adhesive – This adhesive layer bonds the graphic overlay to the top circuit layer,
and is typically an acrylic adhesive. The material is same as the fourth layer. Only the
thickness will be different according to the physical truth.
3. Top Circuit Layer – The material of this layer is special. This is a 0.1mm heat stabilized
PET printed with silver-filled electrically conductive inks and also dielectric inks, which used
for fastening metal domes.
4. Circuit Spacer – This layer separates the top circuit from the bottom circuit so the switch
remains normally open until the keypad is pressed. The circuit spacer is a polyester spacer
with adhesive on both sides.
5.Lower Circuit Layer – This layer is a 0.1mm--0.25mm heat stabilized polyester printed
with silver-filled electrically conductive inks and also dielectric inks. This layer terminates as a
flexible tail that serves as the interconnect to controller PCBs or other electronics.
6.Rear Adhesive Layer – This adhesive layer bonds the entire membrane switch package to
the product enclosure, housing, or to a rigid support panel. MEIBORUI can specify the
appropriate adhesive type and thickness to bond your membrane keypad to your equipment.
Company Introduction
Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan
Membrane Switch is a professional membrane switch manufacturer in China. Our professional
operation can ensure you of quality products supported by mechanical, electronic and control
automation. Based on our good abilities in technology and production workmanship, our
products are strictly checked by our quality supervision department. For your added
assurance, our plants are ISO 9001:2000-certified and our products are compliant with the
RoHS Directive..
“Our 3,000sqm factory houses three production lines furnished with advanced equipment to
manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,
Europe, Australia and other areas worldwide.
