Microwave Oven Flat Touch Sealed Membrane Switches With Shielding Layer Inside

Microwave Oven Flat Touch Sealed Membrane Switches With Shielding Layer Inside

  • Microwave Oven Flat Touch Sealed Membrane Switches With Shielding Layer Inside
  • Microwave Oven Flat Touch Sealed Membrane Switches With Shielding Layer Inside
  • Microwave Oven Flat Touch Sealed Membrane Switches With Shielding Layer Inside
  • Microwave Oven Flat Touch Sealed Membrane Switches With Shielding Layer Inside
Microwave Oven Flat Touch Sealed Membrane Switches With Shielding Layer Inside
Product Details:
Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-122
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirement
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Function: Shielding Layer Protection Material: PET / PVC
Ssize: 150*80mm Feasure: Flat And Nontactile
Application: Microwave Oven Quality: 100% Tested
High Light:

sealed membrane keypad

,

flat membrane switch

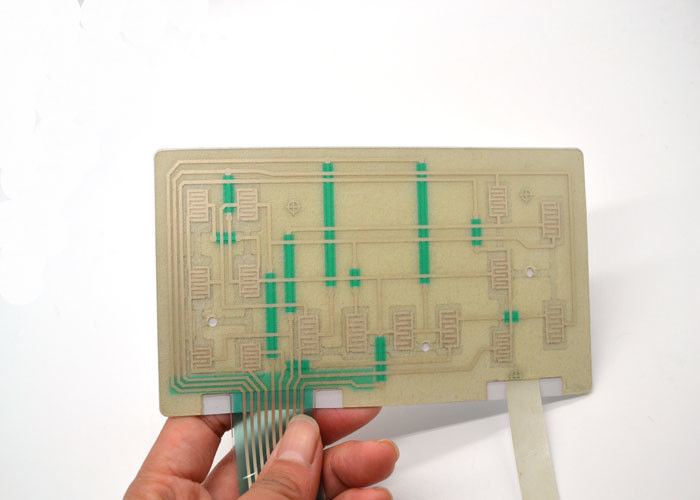

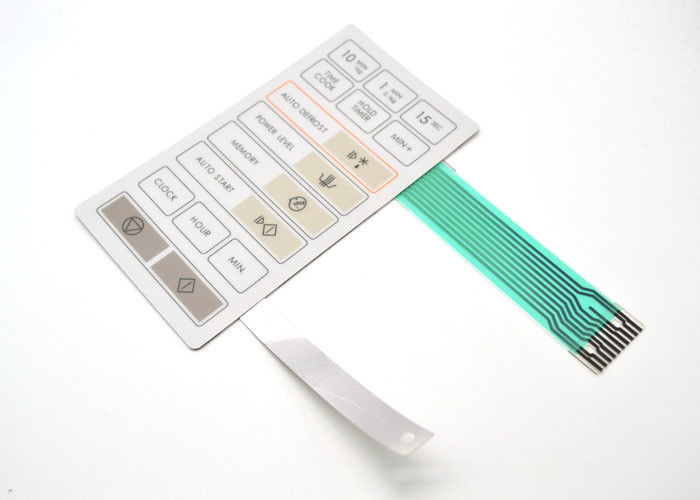

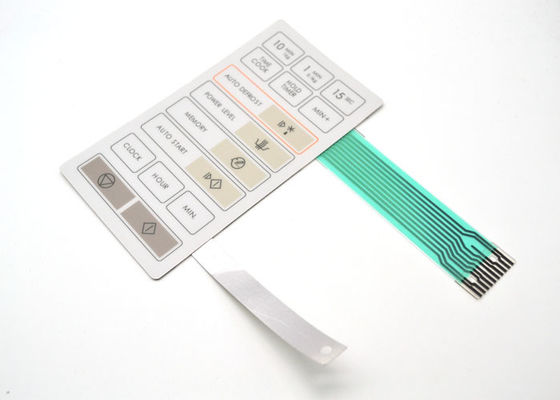

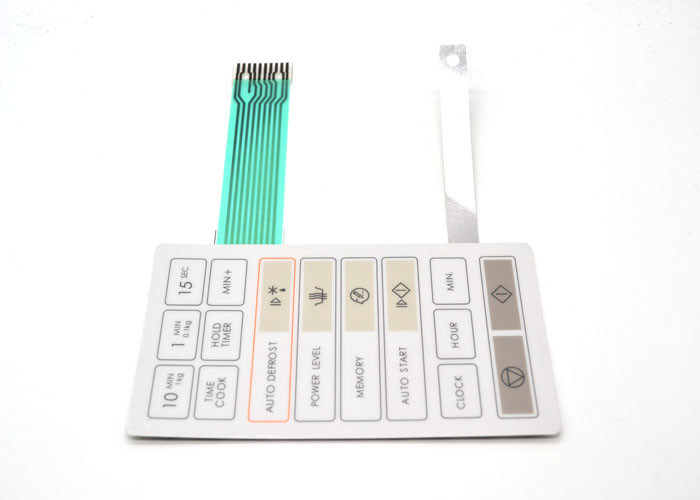

Microwave oven flat touch membrane keypad switch / ZS-122 / flat non



tactile with a shielding layer inside





Product basic information



Material: PET /PC;

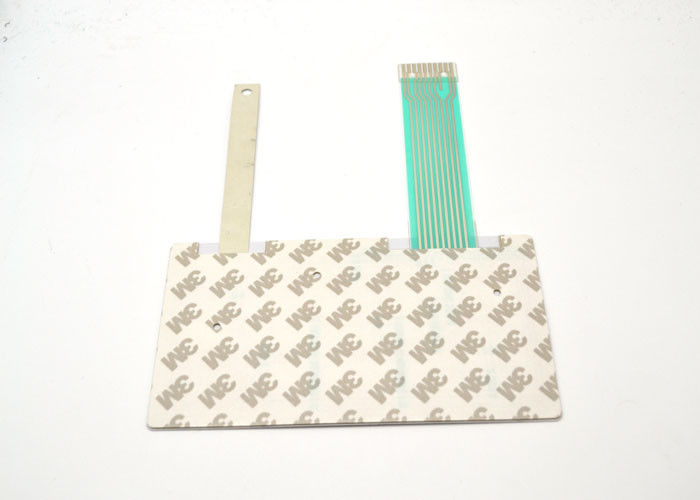

Adhesive: 3M467 & 3M468;



Antioxidative, waterproof and dustproof;



Durable ≥1million times;



Pass: ISO9001:2008RoHS;



Free from the erosion of harmful gas





Main Technical Specifications



Electronic



Characteristic

<35V ( DC )



<100mA 1W

Life



Expectancy



flat type ≥ 500



million times,



tactile type: ≥ 100



million times





Contact



Resistance





10Ω--500Ω (According the



trace length and materials to



confirm)



Operation



Temperature

-40 °c ~ + 80 °c



Insulating



Impedance



>100MΩ 250V DC

Stock



Temperature



-40 °c ~ + 85 °c



Resistance



of the wire



<1 Ω/cm width 1.27mm Humidity

+ 40 °c 90 % ~



95% 240 hour

Operation



Force



flat type 57-284g (2-10 Oz),



tactile type 170-397g



(6-14 Oz)

Switch



Stroke



flat type 0.1-0.5mm,



tactile type 0.6-



1.5mm









Membrane switch markets



Vmanx’s Membrane Switches are used in an enormous variety of markets, with lots of



different demands. From the Medical market, where hygiene and high IP ratings are a must,



to the Defense market, where ruggedness and reliability are important needs.







Advantage


1 .Long life: over 6 million impressions.



2. Long travel: up to 2 mm.



3. Wide range of activation forces, key shapes & sizes.



4. Stable operation at temperatures ranging from -40 °c ~ + 80 °c.



5. Resistant to dust, water, scratches and most chemical products.



6. An aesthetically pleasing, slender and ergonomic design.



7. Beautiful appearance ,rich and bright in color .



8. Small size ,light weight ,good tactility.



9. Customized specification is available and keys can make different shapes.





Microwave Oven Flat Touch Sealed Membrane Switches With Shielding Layer Inside 0Microwave Oven Flat Touch Sealed Membrane Switches With Shielding Layer Inside 1



Company Introduction



Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan



Membrane Switch is a professional membrane switch manufacturer in China. Our professional



operation can ensure you of quality products supported by mechanical, electronic and control



automation. Based on our good abilities in technology and production workmanship, our



products are strictly checked by our quality supervision department. For your added



assurance, our plants are ISO 9001:2000-certified and our products are compliant with the



RoHS Directive..



“Our 3,000sqm factory houses three production lines furnished with advanced equipment to



manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,



Europe, Australia and other areas worldwide.
