Embossed Tactile Metal Dome Membrane Switch Keyboard With Male Connector Cable

Embossed Tactile Metal Dome Membrane Switch Keyboard With Male Connector Cable

  • Embossed Tactile Metal Dome	Membrane Switch Keyboard With Male Connector Cable
  • Embossed Tactile Metal Dome	Membrane Switch Keyboard With Male Connector Cable
  • Embossed Tactile Metal Dome	Membrane Switch Keyboard With Male Connector Cable
Embossed Tactile Metal Dome	Membrane Switch Keyboard With Male Connector Cable
Product Details:
Place of Origin: jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-123
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Product Name: Metal Dome Membrane Switch Material: PET/PVC
Thickness: 0.3mm Exported To: Germany
Brand Name: Zhongshan Quality: 100% Tested
High Light:

custom membrane keypad

,

membrane switch panel

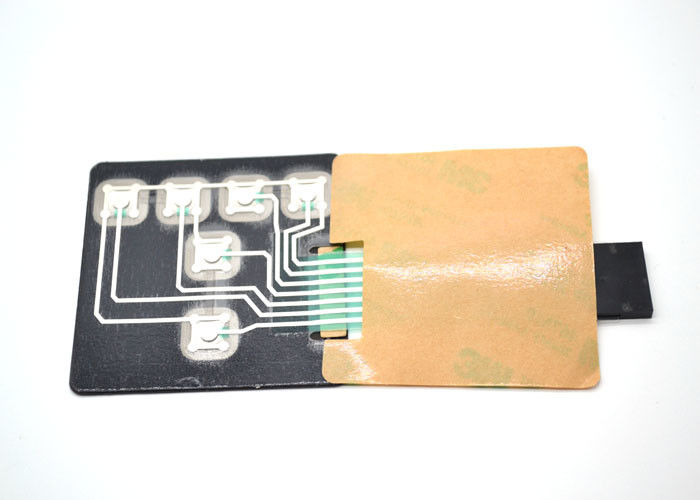

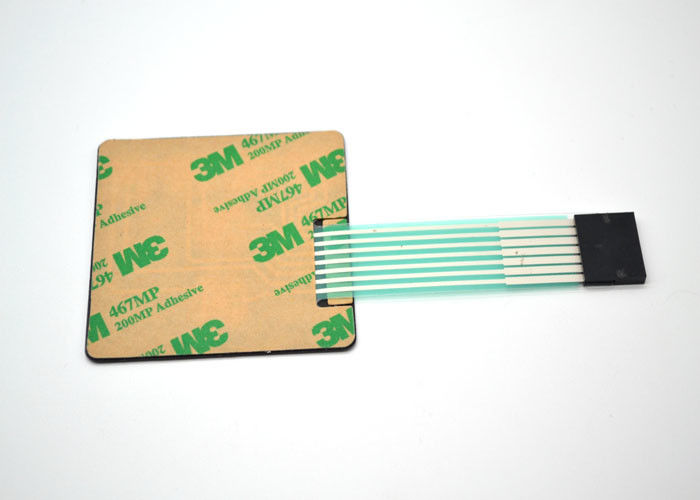

Black and grey colorful top overlay ZS-123 / Embossed tactile metal

dome membrane switch with a male connector cable


Membrane Switch description



Physical Parameter


Membrane keypad --Non-tactile Membrane keypad--Tactile


Nominal actuation force


4-12 ounces 8-20 ounces


Actuation force tolerance


3 ounces 4 ounces


Rebound time


.006″ to .012″ .020″ to .030″


Switch life


10 million 10 million



Electric Parameter



Membrane keypad --Non-tactile Membrane keypad--Tactile


Contact rating


50VDC,100mA 50VDC,100mA


Contact bounce


≤20ms ≤20ms


Environment


Membrane keypad --Non-tactile Membrane keypad--Tactile


Storage Temperature


-40°C-+85°C -40°C-+85°C


Operation Temperature


-30°C-+60°C -30°C-+60°C



Electric parameters:


operating voltage:≤ 50VDC


working current:≤ 100mA


Contact resistance:0.5 ~ 5Ω


Insulation resistance:≥ 100MΩ (100VDC)


substrate voltage:2kDVC


spring time:≤ 6ms


loop resistance:20Ω


insulation ink voltage:100VDC


Physical parameters:


Active force: 0.3 to 3N


Lifespan: >1mil (non-tactile)


Hand speed: ≤5ms


Temperatures: -40 to +85°C


Humidity: 40/48hrs, 95% RH


Working altitude: 0 to 4,500m

Embossed Tactile Metal Dome	Membrane Switch Keyboard With Male Connector Cable 0Embossed Tactile Metal Dome	Membrane Switch Keyboard With Male Connector Cable 1


Application


We have the capacity to provide F150 PET Shield/ flat/ embossed push button keypad

membrane switch with translucent red LCD window, membrane switch panel with other

special requirements, such as Shielding, Windows/Lens Coating, Embossed button, Embossed

LEDs, UV glossy/matte/textured, EL,LED backlight,rubber keypad, FPC keypad, PCB keyboard

etc.

Industrial: Industrial Equipment, Vehicle Navigation, Automotive Machine, Army Command

System, Security System, POS



Instrument: Medical Instruments, Electric Instruments, Detecting Instruments, KIOSK,

Teaching Instrument, Data Acquisition System, Electrocardiograph

Office Machines: Printer, Copier, Fax Machine, Projector, Entrance Guard Machine,

Attendance Machine

Consumer Electronic: LCM/LCD, Computer/cell Phone, Digital Camera, Sound and Imaging

Equipment, Electronic Toys, Remote Controller

Embossed Tactile Metal Dome	Membrane Switch Keyboard With Male Connector Cable 2



Packaging & Delivery


packaging details: inside,shockproof package, PE bag


outside,thickened carton, water-proof


delivery details: express,2-4 working days


air freight,5-7 working days


sea freight,25 working days

Embossed Tactile Metal Dome	Membrane Switch Keyboard With Male Connector Cable 3
