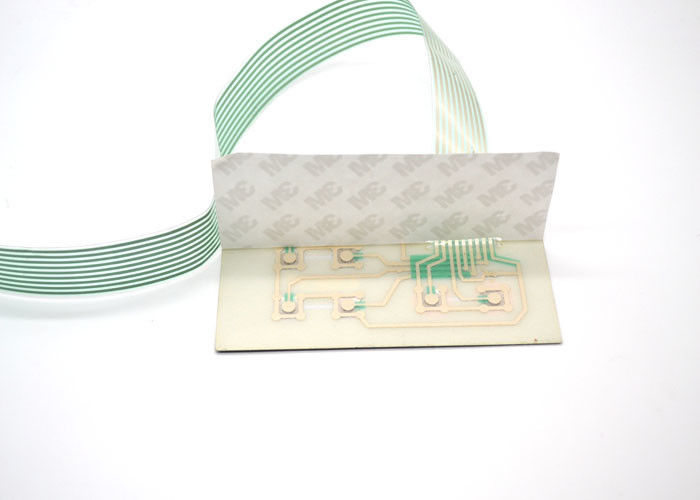

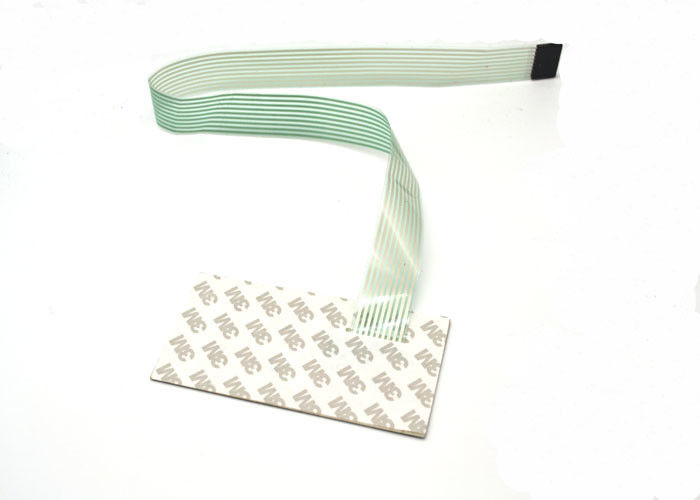

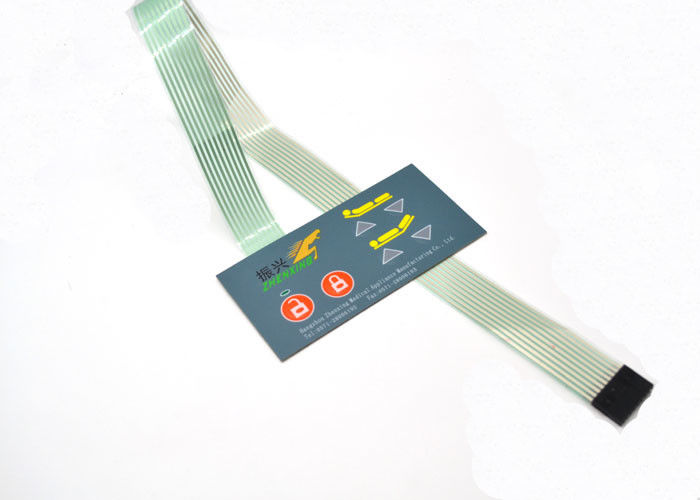

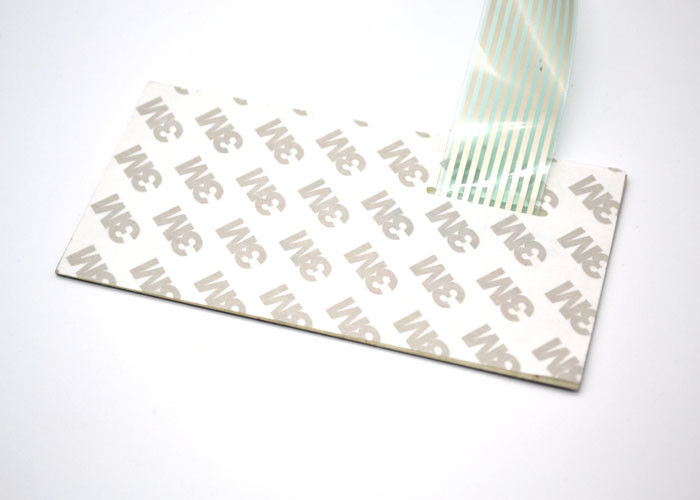

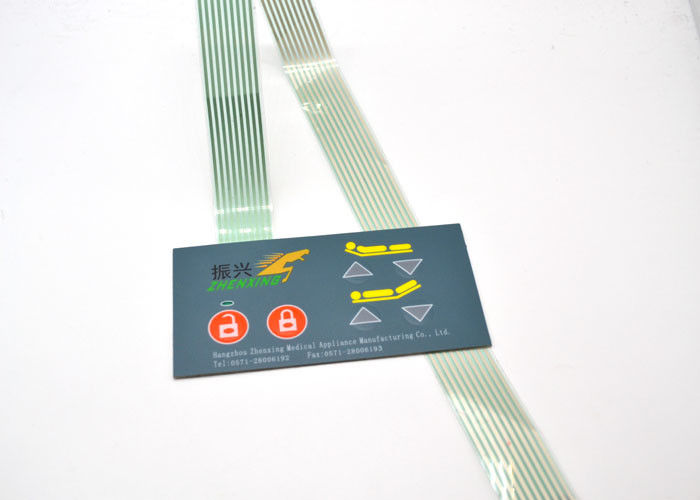

Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments

Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments

  • Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments
  • Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments
  • Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments
  • Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments
  • Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments
Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments
Product Details:
Place of Origin: jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-135
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit,the 70% balance after shipment or full payment before air transportation
Supply Ability: 5000 piece per week
Contact Now
Detailed Product Description
Brand Name: Zhongshan SIZE: 120*60mm
Connector: Male Connector Thickness: 0.3mm
Application: Medical Instruments Quality: 100% Tested
High Light:

tactile membrane keyboard

,

tactile push button switch

Embossed tactile metal dome membrane switch ZS-135 / application for



medical instruments and 3m55230 back adhesive





Membrane switch



Membrane switch design
Material PET(polyester),PC(polycarbonate)
Dimension According to customer's demand,OEM service
Color Pantone and RALcolor matching system.
Rear Adhesive 3M467,3M468,3M9448 ect
Features 1)with metal dome,
2)Key:embossed or flat
3)screen printing
4)with clear or transparent window
5)glossy surface or matte surface
6)Standard Tolerances:+/- 0.10inch(+/-0.25mm)







Strength:



1, Pressing life-span is over ten hundred thousand times.



2, Have the characteristics of the function stabilizes.



3, Handle reliably and good tactility feeling.



4, Customised design





Technology:



Operating voltage: 35V DC


Operating current: 100mA 1W


Contact resistance: < 100 Ohms


Open circuit resistance: ≥ 10MΩ at 100V



Operating temperature: Flat/Metal dome:-20°c to +80°c



Storage temperature: Flat/Metal dome:-40°cto +80°c



Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times



Switch stroke: 0.1 to 0.6mm


Contact bounce: 5 to 30ms


Actcuation force tolerane: +/- 20 to 45g



Tactile ratio: FC > 40%


Operating humidity: up to 95% RH


Female, male connector, solder pins and heat seal connectors are available





Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments 0Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments 1



Shipping :



FEDEX, UPS, DHL, EMS ,TNT via Express company



Also can follow customer by Sea.



Freight collect or prepaid:Of your choice.



Dustproof Embossed Metal Dome Tactile Membrane Keyboard For Medical Instruments 2
