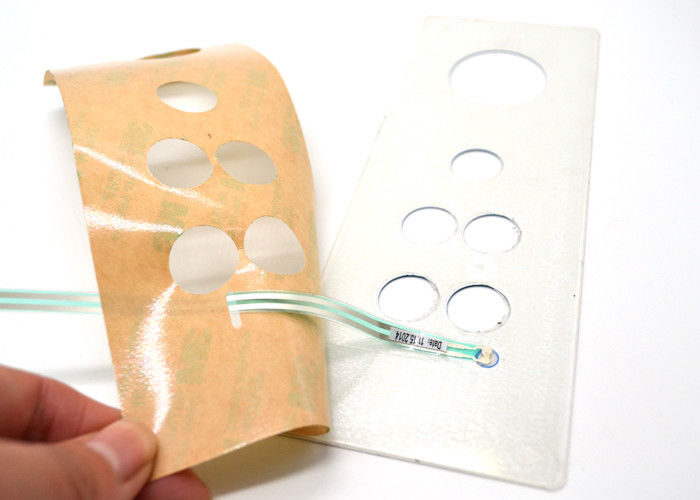

Glossy Surface Membrane Panel Switch , Anti Oil Membrane Type Keyboard

Glossy Surface Membrane Panel Switch , Anti Oil Membrane Type Keyboard

  • Glossy Surface Membrane Panel Switch , Anti Oil Membrane Type Keyboard
Glossy Surface Membrane Panel Switch , Anti Oil Membrane Type Keyboard
Product Details:
Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: Membrane Panel Switch
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags witch carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payments
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Surface Finish: Glossy Ng Feature: Water-proof/Moistureproof/Durable
Brand Name: Zhongshan Material: PET(polyester)/PC(polycarbonate)
Working Current: ≤ 100mA Rear Adhesive: 3M467
High Light:

key membrane switch

,

custom membrane switches

Glossy Surface Membrane Panel Switch , Anti Oil Membrane Type Keyboard​





What is Membrane Panel Switch ?



The Membrane Panel Switch is a momentary switching device that is manufactured by using a



series of flexible layers of polymer films and adhesives. The top layer, called a graphic



overlay, is manufactured by printing on the down surface of transparent polyester or



polycarbonate film.



Membrane switches can be constructed of multiple circuit layers, and more optimized graphic



design features, such as domed key embossing. Designs that are more complex require more



material layers for proper construction and reliable operation. Membrane switches, when



combined with components such as a tactile dome, graphic overlay, or integrated LEDs or



resistors can provide the designer with virtually limitless capabilities to create the ideal



custom user interface for their products.





Membrane Panel Switch Basic Properties



Electrical Properties:



Rated Voltage



≤50V DC



Rated Current



≤ 100mA



Operating Power



≤1W



Insulation Resistance



≥100MΩ (250V DC)



Loop Resistance



10Ω~2kΩ (based on the design)



Contact Resistance



0.5 ~ 5Ω



Wire Lead Resistance



<1Ω/cm



Base Material Voltage Withstand





1500V DC



Mechanical Properties:





Life Expectancy



Flat type ≥ 5 million times, Tactile type ≥ 1 million times



Operation Force



Flat Type 57-284g ,Tactile Type 170-397g



Dome Rebound Time



≤6ms



Tail Bending Performance



≤180°



Switch Stroke



Flat 0.1~0.5mm,Tactile 0.6~1.5mm



Vibration



20G's max.



Thickness



0.7~1.5 mm



Environmental Properties:





Operation Temperature



-40°C to +80°C (-40°to 176°F)



Storage Temperature



-40°C to +85°C (-40°to 185°F)



Atmospheric Pressure



86 ~ 106 kPa
Humidity +40°C, 90%~95%RH for 240 Hours







Our Advantages



1. We are a factory with total about 488 staff, 200 thousands square meter. Throughout



production process our quality is strictly being controlled with detailed record. All of our



machines were upgraded ONE year ago and brand new.



2. With more than 18 years experiences of 10 Designers and 18 Engineers, so customized



product service is No problem, we can offer you the best solutions.



3. You will get fairly competitive prices with fantastic quality products. Also the packaging,



delivery time and after-sales services are guaranteed, we have a powerful and professional



team.
