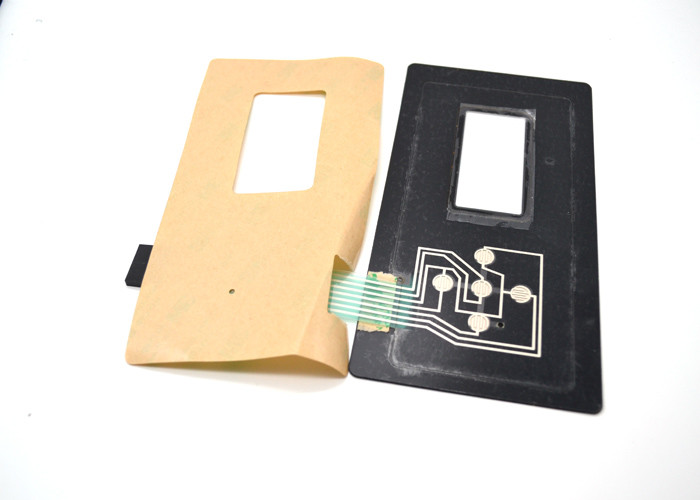

Light Weight Tactile Switch Keyboard / Small Volume Membrane Switch Panel
What is A Tactile Switch Keyboard?
Tactile Switch Keyboard are generally made from five different layers. This includes membrane,
graphic, tactile, rigid and static layers. The first layer contains the graphic interface for the
user to control the machine. It can also include a flexible circuit for less expensive
alternatives. Another layer will contain the printed circuit which allows a signal to be
transmitted. The ink that is used for the printing on the circuit is generally made up of a
variety of metals. This helps for the signal to be conductive for turning on and off. Membrane
switches allow for communication to take place in electronic devices. Membrane switches are
a piece of equipment that can be highly sophisticated or rather simple by design.
| Electronic Characteristic |
<35V ( DC ) <100mA 1W
|
|
Contact Resistance
|
10Ω--500Ω (According the trace length and materials to confirm) |
|
Insulating Impedance
|
>100MΩ 250V DC |
|
Resistance of the wire
|
<1 Ω/cm width 1.27mm |
|
Operation Force
|
flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz) |
|
Life Expectancy
|
flat type ≥ 500 million times, tactile type: ≥ 100 million times |
|
Operation Temperature
|
-40 °c ~ + 80 °c |
|
Stock Temperature
|
-40 °c ~ + 85 °c |
|
Humidity
|
+ 40 °c 90 % ~ 95% 240 hour |
|
Switch stroke
|
flat type 0.1-0.5mm, tactile type 0.6-1.5mm |
Strength:
1, Pressing life-span is over ten hundred thousand times.
2, have the characteristics of the function stabilizes.
3, handle reliably and good tactility feeling.
4, customised design
Technology
Operating voltage: 35V DC
Operating current: 100mA 1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Female, male connector, solder pins and heat seal connectors are available
Packaging & Delivery
Packaging: PE bag, Carton, Wooden case
Delivery Detail: two weeks after order confirmation
