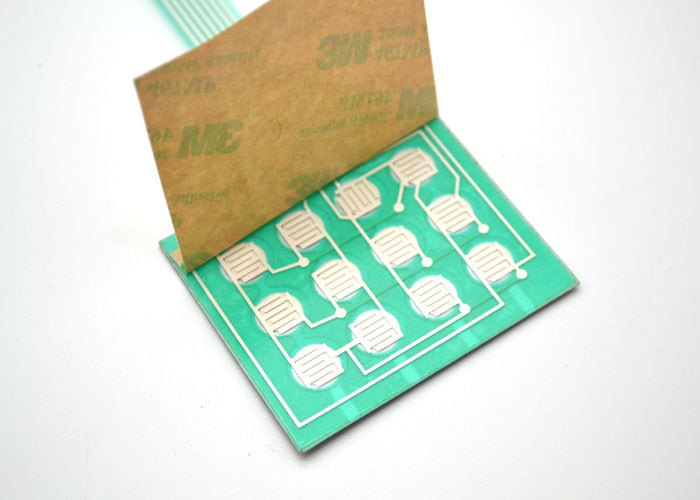

Long Service Life Tactile Membrane Switch For Medical Instruments 2-24V
Tactile Membrane Switch Technical Specification
|Environmental||Operating Temperature||-20° to 65° C (-4° to 149° F)|
|Storage Temperature||-40° to 85° C (-40° to 185° F)|
|Seals||3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.|
Special sealing options are available for wet environments.
|Mechanical||Travel||.007 inches to .015 inches|
|Operating Force||4oz to 8oz|
|Electrical||Operating Voltage||30 volts maximum|
|Operating Current||10 microamps to 100 milliamps, resistive|
|Closed Circuit Resistance||100 ohms typical, dependent on size and layout|
|Open Circuit Resistance||10 megohms|
|Operating Power||1 watt maximum|
|Circuitry||X-Y matrix or one side common|
Tactile Membrane Switch Application
Classic applications of membrane switches include consumer electronics like the microwave
oven panel, air conditioner control panel, TV remote control etc., machinery, test instrument,
meters, medical industry, energy industry, Auto industry, aviation industry, healthcare
industry etc. Tactile feedback of keys can be provided by embossing the top PET/PC layer or
embedding metal snap domes, polyester domes or forming the graphic layer.
The benefits of membrane switches include flexible, easy of cleaning, sealing ability and low
