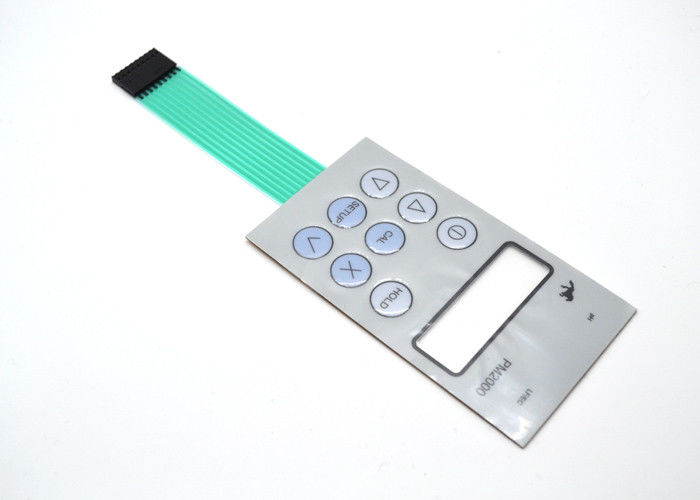

Custom Made Metal Dome Membrane Switch With White Blue Orange Colors

Custom Made Metal Dome Membrane Switch With White Blue Orange Colors

  • Custom Made Metal Dome Membrane Switch With White Blue Orange Colors
Custom Made Metal Dome Membrane Switch With White Blue Orange Colors
Product Details:
Place of Origin: Jiangsu (China mainland)
Brand Name: Zhongshan membrane switch
Certification: ROHS ISO 9001,2000
Model Number: Metal Dome Switch
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: Plastic bags with carton boxes or due to customer detail requirement
Delivery Time: within one week after receiving payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment after air trasporation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Circuit: 2.54mm Surface: Glossy
Name: Metal Dome Membrane Switch Color: White Blue Orange Colors
Contact Current: 2-24V Thickness: 0.3mm
High Light:

key membrane switch

,

custom membrane switches

Custom made Metal Dome Membrane Switch With white blue orange colors



Metal Dome Membrane Switch Descriptiion



This is a metal dome tactile membrane switch, On the surface, it prints customer



logo and word expression, the keyboard is flat tactile with grey, white blue



orange colors on the back side. it is application for installing on the Machine tool



inthe factory. It is mostly exported to Canda.





Metal Dome Membrane Switch Specification



Environmental Operating Temperature -20° to 65° C (-4° to 149° F)
Storage Temperature -40° to 85° C (-40° to 185° F)
Seals 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.

Special sealing options are available for wet environments.



Mechanical Travel .007 inches to .015 inches
Operating Force 4oz to 8oz
Electrical Operating Voltage 30 volts maximum
Operating Current 10 microamps to 100 milliamps, resistive
Closed Circuit Resistance 100 ohms typical, dependent on size and layout
Open Circuit Resistance 10 megohms
Operating Power 1 watt maximum
Circuitry X-Y matrix or one side common



Our Best Service: Membrane switch with Metal dome



(1). Custom design expertise



(2). Single source manufacturing



(3). Assembly of surface mount components/circuit boards/backplates



(4). Multi-tasking switch pattern designs



(5). Custom molded boxes, bezels and frames with switch installation



(6). Precise color matching and repeatability



(7). Water resistant designs



(8). Fiber optic back-lighting



(9). 100% function testing of all circuits in-house







FAQ







1. How can i get a sample to check your sample?





After price confirmation, you can require for samples to check our quality.


If you need the samples, we can send you the samples by free( depends on the kind and



qty of samples) or you can pay for sample cost, and it can be refundable after order



confirmation when your quantity of the order is bigger than our MOQ.




2. Can you do the design for us?




Yes. We have a professional engineer having rich experience in wire harness & cable



assemblydesign. Just let us know your ideas and we will help to carry out your ideas into



perfect products. It does not matter if you do not have someone to complete files. Tell us



your detalied SPEC. of products, and we will send you finished drawing for confirmation.





3. What about the lead time for mass production?




Honestly, it depends on the order quantity and the season you place the order. The lead



time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your



address within 4 weeks.





Packaging & Delivery





packaging details: inside,shockproof package, PE bag



outside,thickened carton, water-proof



delivery details: express,2-4 working days



air freight,5-7 working days



sea freight,25 working days
