| Place of Origin: | Jiangsu (China mainland) |
| Brand Name: | Zhongshan Membrane Switch |
| Certification: | ISO9001,2000 |
| Model Number: | Flexible Membrane Switch |
| Minimum Order Quantity: | 100pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Seal plastic bags(inner),carton boxes(outer) or due to customer requirement |
| Delivery Time: | within one week after payment |
| Payment Terms: | 30% deposit, the 70% balance after shipment |
| Supply Ability: | 50000pieces per week |
| Name: | Light Weight | Keypad Butto: | Metal |
|---|---|---|---|
| Size: | 145mm*70mm | Real Adhesive: | 3M467MP |
| Applicattion: | Hand Controller | Circuit: | 2mm Citcuit |
| High Light: | push button membrane switch,key membrane switch |
||

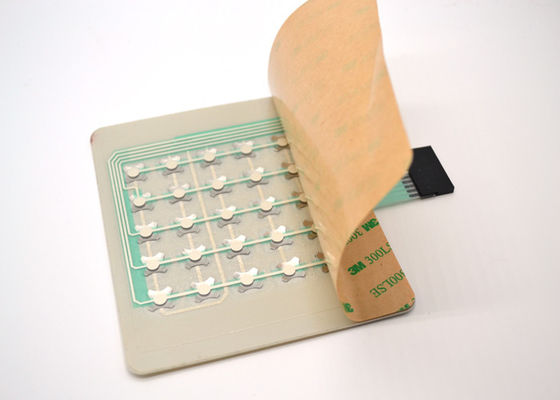

Dustproof Metal Tactile Switch / Light Weight Custom Membrane Keypad
Metal Tactile Switch Parameter
|
1.Electrical Properties
|
|
||
|
Electrical Level:
|
35V(DC), 100mA,1W
|
||
|
Contact Resistance:
|
10Ω~500 Ω
|
||
|
Insulation Resistance:
|
100MΩ/100V
|
||
|
Dielectrics Voltage-resistance:
|
250VRms(50~60Hz 1min)
|
||
|
Chattering Time:
|
≤ 5ms
|
||
|
Life Time:
|
Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
|
||
|
Tail Folding:
|
R>1,180
|
||
|
2.Mechanical Properties
|
|
||
|
Operating Force:
|
Flat type 57~280g(2~10oz); Tactile type 150~400g(6~14oz)
|
||
|
Switch Stroke:
|
Planar type 0.1~0.5mm; Tactility type 0.6~1.5mm
|
||
|
3.Environmental and Storage Conditions
|
|
||
|
Operation Temperature:
|
-40°C ~ +80°C
|
||
|
Storage Temperature:
|
-40°C ~ +70°C
|
||
|
Humidity:
|
40°C, 90%~95%, 240 hours
|
Our Service:
Free samples are available.
Your inquiry will be replied within 24 hours.
Well-trained & experienced staff are to answer all your inquiries in English of course.
Our products are exported to Europe, North America, South America, Africa, many countries
in Asia etc.
Good after-sale service offered, please get back if you get question.
100% product inspection
Small orders are acceptable.
