Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Zhongshan Membrane Switch
Certification:
RoHS,ISO9001:2000
Model Number:
Metal Dome Membrane Switch

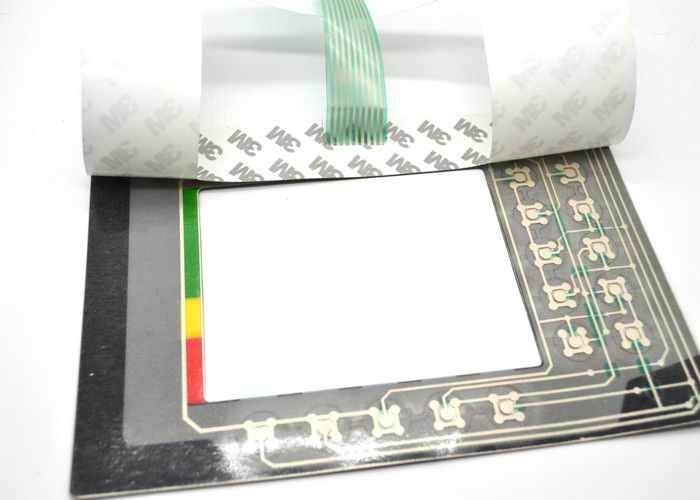

Colorful Metal Dome Membrane Switch Screen Printing Surface Treatment
Metal Dome Membrane Switch Advantage
Metal Dome Membrane Switch has the advantage of the whole flat, thin shape, quality, small,
dust-proof, good, good water resistance, is a semi-enclosed structure. In addition, the panel
design, and great freedom of choice of colors. Positive range of applications of desktop
computers, copiers, fax machines, toys, square computer, word processor and other areas of
expansion.
Metal Dome Membrane Switch Specification
| op Adhesive | PET Double-sided Tape | 0.10/.125mm | |
| Paper Double-sided Tape | 0.10mm | ||
| Transfer Tape | 0.06/.12mm | ||
| Retainer | PET | Glossy | 0.125mm |
| Spacer | PET Double-sided Tape | 0.225/.275mm | |
| Circuit Layer | PET | Glossy | 0.125mm |
| Rear Adhesive | Paper Double-sided Tape | 0.10mm | |
| Transfer Tape | 0.06/.12mm | ||
| Connector | Pin | 2.54mm Metal,Male/Female | |
| Housing | Female,2.54mm |
Electrical Performances
|
Wire Resistance
|
0.5mm width,<1Ω/cm | Rated Current | 25-100mA,0-30V DC |
|
Insulation Resistance
|
>100MΩ 250V DC | Working Voltage | <50V DC |
|
Non-tactile Switch
|
0.1-0.4mm | Tactile Switch | 0.4-1.0mm |
|
Working Life
|
Working Life | Working Temperature | -40℃ ~ 70℃ |
|
Working Humidity
|
40℃,98%RH No influence | Substrate Voltage | 1500V DC |
|
Feedback Time
|
10ms | Tail Folding | R>1,180 |
Packaging & Delivery
packaging details: inside,shockproof package, PE bag
outside,thickened carton, water-proof
delivery details: express,2-4 working days
air freight,5-7 working days
sea freight,25 working days
