Metal Dome Membrane Switch

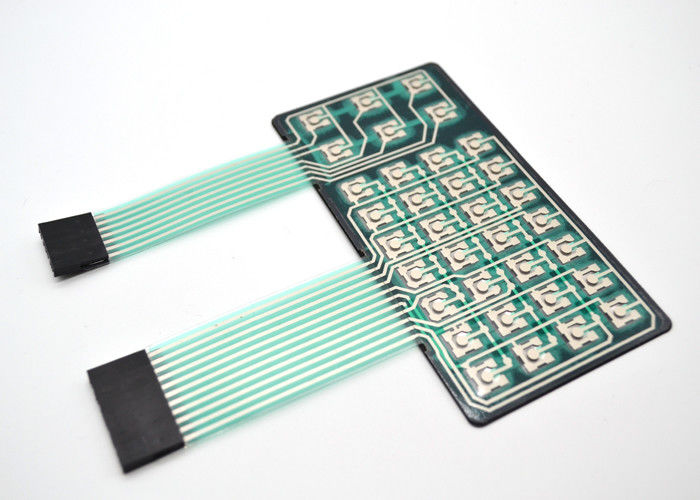

OEM Membrane Switch Keyboard / Moisture Proof Membrane Push Button Switch
Membrane Switch Keyboard Introduction
A membrane switch is a printed electronic circuit that uses pressure to open and close a circuit. The membrane switch circuitry is most often screen printed using conductive inks, which are typically made of silver, carbon, and/or graphite.
Membrane switches are part of a range of devices considered to be user interfaces (also called operator interfaces, or man-machine interfaces) along with display-based touch screens, and mechanical switches such as push-button, toggle, rocker, and slide switches. The ultimate purpose of a membrane switch is to serve as the interface between man and machine, enabling an operator to communicate with a piece of equipment, instrument, or machinery.
Membrane switches can be manufactured with non-tactile switches, which activate with 4 – 8 oz of touch pressure. Non-tactile switches are less expensive and provide the longest switch life. Tactile switches have a snap-action feel and may also be incorporated into a membrane switch, enhancing tactile feedback, but with a greater cost and lower switch life.
Membrane Switch Keyboard Parameters
Electronic
Characteristic
|
<35V ( DC ) <100mA 1W
|
Life
Expectancy
|
flat type ≥ 500 million times, tactile type: ≥ 100 million times
|
Contact
Resistance
|
10Ω--500Ω (According the trace length and materials to confirm)
|
Operation
Temperature
|
-40 °c ~ + 80 °c
|
Insulating
Impedance
|
>100MΩ 250V DC
|
Stock
Temperature
|
-40 °c ~ + 85 °c
|
Resistance of
the wire
|
<1 Ω/cm width 1.27mm
|
Humidity
|
+ 40 °c 90 % ~ 95% 240 hour
|
Operation
Force
|
flat type 57-284g (2-10 Oz), tactile type 170-397g (6-14 Oz)
|
Switch
stroke
|
flat type 0.1-0.5mm, tactile type 0.6-1.5mm
|
What are Membrane Switch Keyboard ?
The easiest way to understand what a membrane switch is, is to reference an all-time favorite
device-the microwave. The membrane switch on the microwave is the buttons—the human
interface layer—that communicates to the microwave that you’d like to reheat your food for
one minute.
1. Quotaion: We can do OEM for you and welcome to send us your enquiries at any time. We
will reply you in 24 hours.
2. Artwork: After price confirmation, we will prepare to do artwork of the product for your
approval in 3 days.
3. Sample: Once you approve the artwork, then we will arrange to produce samples.
4. Production: After sample confirmation, it will take two weeks to finish order(sooner or
longer depneding on the order quanity).
5. Shipping: We can send products by Fed-ex, UPS, DHL, TNT or other shipping agent you
recommand and then will send you tracking number for your reference.
