| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Zhongshan Membrane Switch |
| Certification: | RoHS,ISO9001:2000 |
| Model Number: | ZS-33 |
| Minimum Order Quantity: | 100pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer requierment |
| Delivery Time: | within one week after payment |
| Payment Terms: | 30% deposit,the 70% balance after shipment |
| Supply Ability: | 50000pieces per week |
| Overlay Materials: | Polyester(PET) And Polycarbonate(PC). | Matching Color: | Membrane Switch LED |
|---|---|---|---|
| Contact Current: | 25~100mA | Voltage Rating: | 2~24V |
| Standard Tolerances: | +/- 0.10inch(+/-0.25mm) 7.Performance | Size: | 140mm*100mm |
| High Light: | membrane push button switch,standard membrane keypad |
||
Push Button Single Membrane Switch LED , Flat PCB Membrane Switch Panel
Membrane Switch LED Description
This is a membrane switch with LED emboss tactile , It is exported to Isreel.
1. Overlay Materials:The most commonly used base materials are polyester(PET) and
polycarbonate(PC).
2. Rear Adhesive:3M467.
3. Matching color:Pantone and RALcolor matching system.
4. Gloss,semi-gloss or matte
5. metal dome tactile
6. Standard Tolerances:+/- 0.10inch(+/-0.25mm)
7.Performance
Membrane Switch LED Electrical Performances
|
Wire Resistance
|
0.5mm width,<1Ω/cm | Rated Current | 25-100mA,0-30V DC |
|
Insulation Resistance
|
>100MΩ 250V DC | Working Voltage | <50V DC |
|
Non-tactile Switch
|
0.1-0.4mm | Tactile Switch | 0.4-1.0mm |
|
Working Life
|
Working Life | Working Temperature | -40℃ ~ 70℃ |
|
Working Humidity
|
40℃,98%RH No influence | Substrate Voltage | 1500V DC |
|
Feedback Time
|
10ms | Tail Folding | R>1,180 |

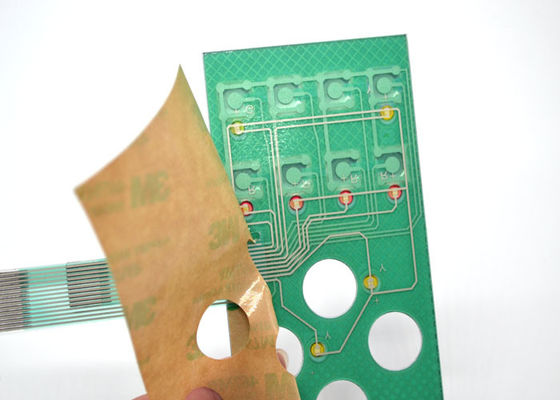

Product show:
