|Place of Origin:||Jiangsu, China (Mainland)|
|Brand Name:||Zhongshan Membrane Switch|
|Minimum Order Quantity:||100pieces|
|Packaging Details:||paper carton( outer) and plastic bubble bag (inner).Or per your needs.Special requirement accepted.|
|Delivery Time:||within one week after payment|
|Payment Terms:||30% deposit the 70% balance after shipment, or full payment after air transpotation|
|Supply Ability:||50000pieces per week|
|Application:||Instrument Equipment||Voltage Rating:||2-24V|
|Surface:||Embossed||Contact Current:||25~100 MA|

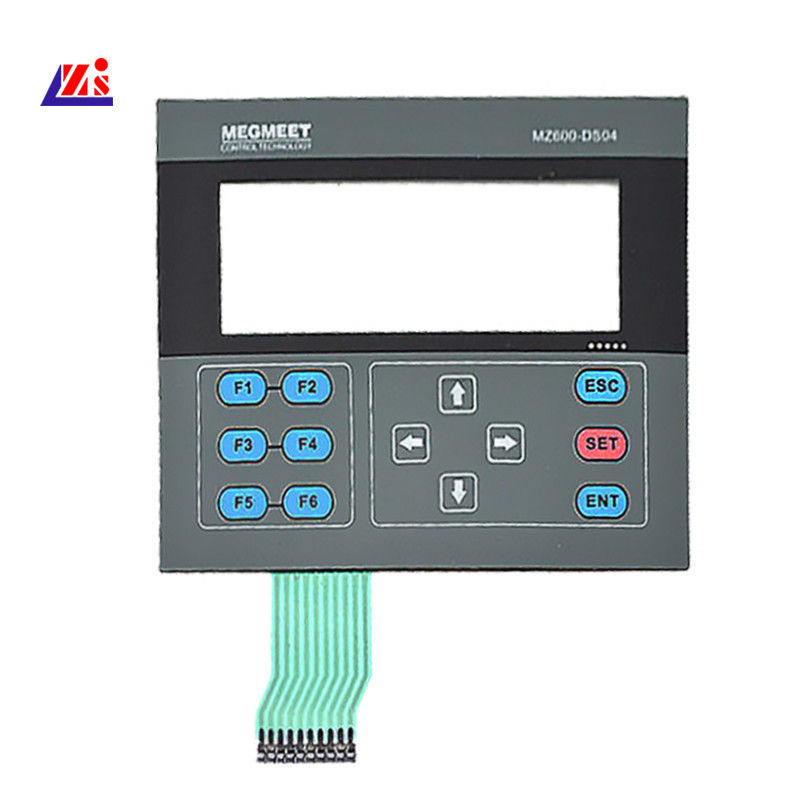

Flat LED Membrane Switch Keyboard,
Embossed Membrane Switch Keyboard,
Tactile Membrane Switch Keyboard
Matte finish pc pet meterial membrane switch keypad with backlight /
ZS-10 / printing a phosphor powder on button
Overlay Materials: The most commonly used base materials are polyester and polycarbonate.
Rear Adhesive: 3M 467MP, 3M 468MP, etc.
Standard Tolerances: +/-.010 inch.
Matching color: Pantone and RAL color matching system.
Tail, pin and circuit layout: subject to customers detailed requests.
Type of Switch:
• ebossed tactile and metal dome with phorspor powder
• Tactile with stainless steel domes
• Tactile with poly domes on the circuit
|0.5mm width,<1Ω/cm||Rated Current||25-100mA,0-30V DC|
|>100MΩ 250V DC||Working Voltage||<50V DC|
|Working Life||Working Temperature||-40℃ ~ 70℃|
|40℃,98%RH No influence||Substrate Voltage||1500V DC|
Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan
Membrane Switch is a professional membrane switch manufacturer in China. Our professional
operation can ensure you of quality products supported by mechanical, electronic and control
automation. Based on our good abilities in technology and production workmanship, our
products are strictly checked by our quality supervision department. For your added
assurance, our plants are ISO 9001:2000-certified and our products are compliant with the
“Our 3,000sqm factory houses three production lines furnished with advanced equipment to
manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,
Europe, Australia and other areas worldwide.
