| Place of Origin: | Jiangsu(China mainland) |
| Brand Name: | Zhongshan |
| Certification: | ROHSISO9001,2000 |
| Model Number: | ZS-84 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | negotiaton |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer detail requirements |
| Delivery Time: | within one week after receiving order payments |
| Payment Terms: | 30% deposit, the 70% balance after shipment or full payment before air transportation |
| Supply Ability: | 50000 pieces per week |
| Brand Name: | Zhongshan | Contact Current: | 2-24V |
|---|---|---|---|
| Product Name: | Membrane Switch | Wiindow: | Red Transparent Window |
| Size: | 60*110mm | Thickness: | 0.3mm |
| High Light: | Push Button Flat Membrane Switch,Scratch Resistant Flat Membrane Switch,ESD Protection Membrane Switch |
||

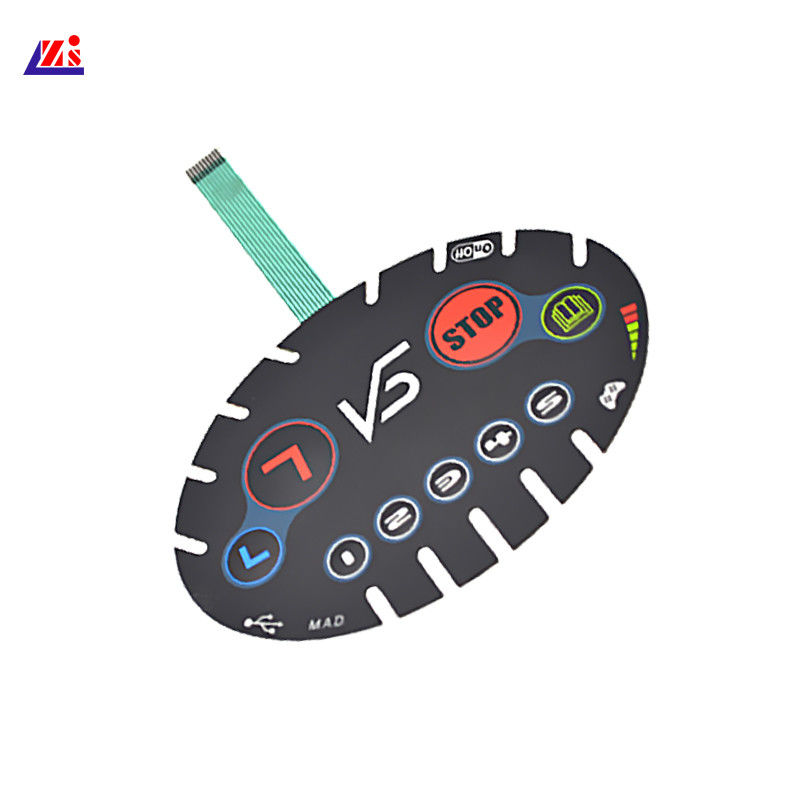

Flat non-tactile membrane switch and with two red transparent window /
ZS-86 / installing on the Power Suppliers
Product Description
A membrane switch is a momentary electrical contact on/off switch that activates or de-
activates an electric circuit. These are sometimes called single pole, single throw, normally
open switches. Membrane switches are manufactured by screen printing the circuit directly
onto a plastic substrate with silver or carbon conductive ink. Its simple, versatile, durable,
and economical design make it a superior alternative to the mechanical switch.
1. Graphic overlay: Polyester construction – offers long life and chemical resistance
2. Optional Hardcoats: Gloss, semi-gloss or matte
Chemical and scratch resistant
Can be used to create display windows and decorative finishes
3. Custom Colors: Translucent colors for back-lighting and windows
Deadfronts to hide legends until back-lit
4. Variety of Tactile Response Options: Tactile graphic over flat circuits
Pillow or rim embossing
Polyester or metal domes
5. Switch Circuit Layers:
a. Screened silver circuit – for switching loads up to one watt
b. Copper PCB – for switching loads greater than one watt, or when using LEDs, displays, etc.
c. Screened silver shield applied to top of circuit for ESD protection
6. Spacer Layer: HeatSeal – internally vented
Thickness based on actuation force requirements
Custom design expertise
Single source manufacturing
Assembly of surface mount components/circuit boards/backplates
Multi-tasking switch pattern designs
Custom molded boxes, bezels and frames with switch installation
Precise color matching and repeatability
Water resistant designs to Nema 4
Fiber optic back-lighting
Company Introduction
Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan
Membrane Switch is a professional membrane switch manufacturer in China. Our professional
operation can ensure you of quality products supported by mechanical, electronic and control
automation. Based on our good abilities in technology and production workmanship, our
products are strictly checked by our quality supervision department. For your added
assurance, our plants are ISO 9001:2000-certified and our products are compliant with the
RoHS Directive..
“Our 3,000sqm factory houses three production lines furnished with advanced equipment to
manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,
Europe, Australia and other areas worldwide.
