Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments

Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments

  • Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments
  • Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments
  • Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments
  • Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments
Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments
Product Details:
Place of Origin: jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-133
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30%deposit, the 70% balance after shipment or full payment before air transportation
Contact Now
Detailed Product Description
Type: LED Membrane Switch Brand Name: Zhongshan
Application: Medical Instruments Model Number: ZS-133
Material: PET / PVC Connector: Two Male Connectors
High Light:

membrane push button switch

,

standard membrane keypad

Embossed tactile LED membrane switch / ZS-133 / application for



medical instruments and with two male connectors







Electrical Performances





Wire Resistance



0.5mm width,<1Ω/cm Rated Current 25-100mA,0-30V DC



Insulation Resistance



>100MΩ 250V DC Working Voltage <50V DC



Non-tactile Switch



0.1-0.4mm Tactile Switch 0.4-1.0mm



Working Life



Working Life Working Temperature -40℃ ~ 70℃



Working Humidity



40℃,98%RH No influence Substrate Voltage 1500V DC



Feedback Time



10ms Tail Folding R>1,180








The main properties of custom design electronic membrane switch


1. PC /PET as overlay (control panel)


2. Flat keys or tactile type


3. Embossed button with good tactile feel


4. Pre-assemble with or without metal domes



5. Water-resistant, dust-proof, gas-proof and scratch-resistant


6. Long life cycle.







Our Best Service:Membrane switch



(1) Custom design expertise



(2) Single source manufacturing



(3) Assembly of surface mount components/circuit boards/backplates



(4) Multi-tasking switch pattern designs



(5) Custom molded boxes, bezels and frames with switch installation



(6) Precise color matching and repeatability



(7) Water resistant designs



(8) Fiber optic back-lighting



(9) 100% function testing of all circuits in-house

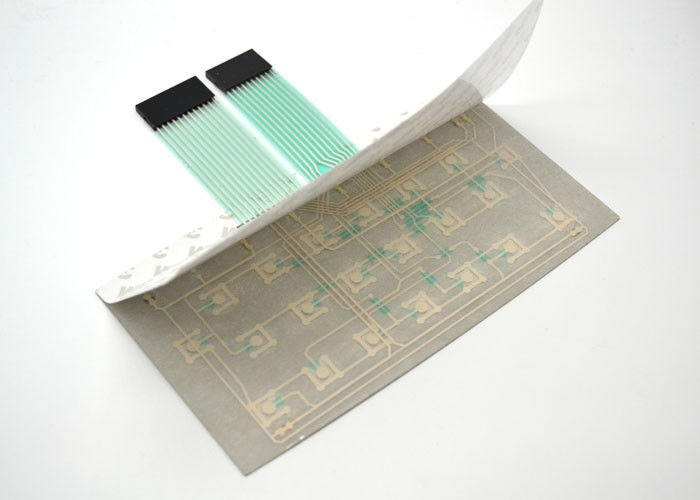

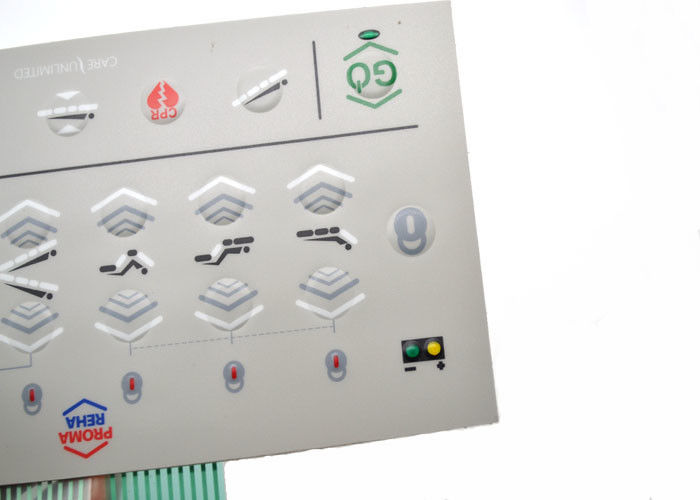

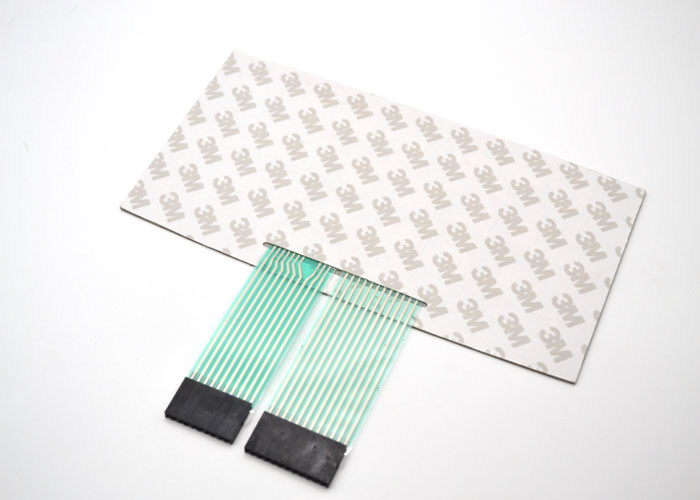

Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments 0



Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments 1



Company Introduction





Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan



Membrane Switch is a professional membrane switch manufacturer in China. Our professional



operation can ensure you of quality products supported by mechanical, electronic and control



automation. Based on our good abilities in technology and production workmanship, our



products are strictly checked by our quality supervision department. For your added



assurance, our plants are ISO 9001:2000-certified and our products are compliant with the



RoHS Directive..



“Our 3,000sqm factory houses three production lines furnished with advanced equipment to



manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,



Europe, Australia and other areas worldwide.





Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments 2



Packing and Delivery

Moisture Proof LED Membrane Switch Embossed Tactile Keypad For Medical Instruments 3
