Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window

Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window

  • Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window
  • Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window
Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Zhongshan Membrane Switch
Certification: RoHS,ISO9001:2000
Model Number: ZS-20
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: seal plastic bags with carton box or due to customer detail requirements
Delivery Time: within 7 days after payment
Payment Terms: 30%deposit,the 70%balance after shipment or full payment after air transportation
Supply Ability: 50000pieces per week
Contact Now
Detailed Product Description
Material: FPC Pet Size: 55*70mm
Color: Green White Red Yellow Real Adhesive: 3M467MP
Contact Current: 100MA Name: FPC
High Light:

membrane type keyboard

,

flexible membrane switch

Tactile FPC membrane switch keypad with clear window / ZS-20 / Four



embossed button with a display window





Product Description



Customized High Quality FPC/PET capacitive touch button keypad membrane switch



Membrane switch is an electrical switch for turning a circuit on and off. It differs from a

mechanical switch, which is usually made of copper and plastic parts: a membrane switch is a

circuit printed on PET or ITO. The ink used for screen printing is usually copper / silver /

graphite filled and therefore conductive.

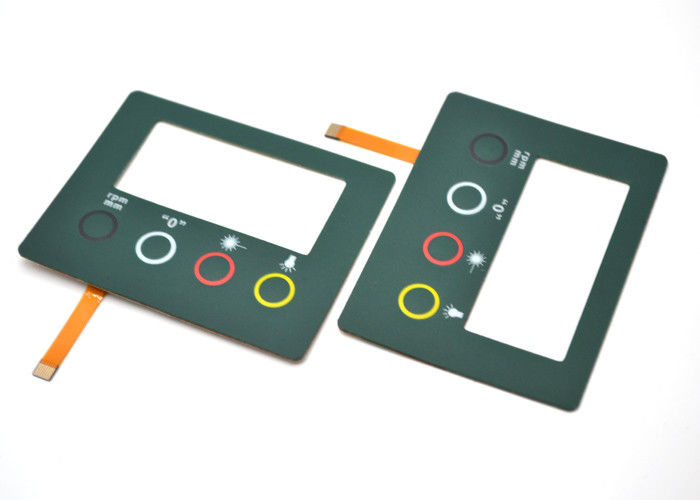

Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window 0Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window 1



Technical Parameters





1. Electrical



Maximum Circuit Rating: 35V(DC),100mA,1W



Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)



Insulation Resistance: 100MΩ 100V



Dielectric: 250 Vrms (50~60Hz 1min)



Contact Bounce: < 5ms



Life: Flat: ≥ 5million times



Tactile: ≥ 1 million times



Duraswitch: ≥ 10million times



2. Mechanical



Actuation Force: Flat: 57~284g(2~10oz)



Tactile: 170~397g(6~14oz)



Switch Height: Flat: 0.1~0.5mm



Tactile: 0.6~1.5mm





Technical Structure picture as following

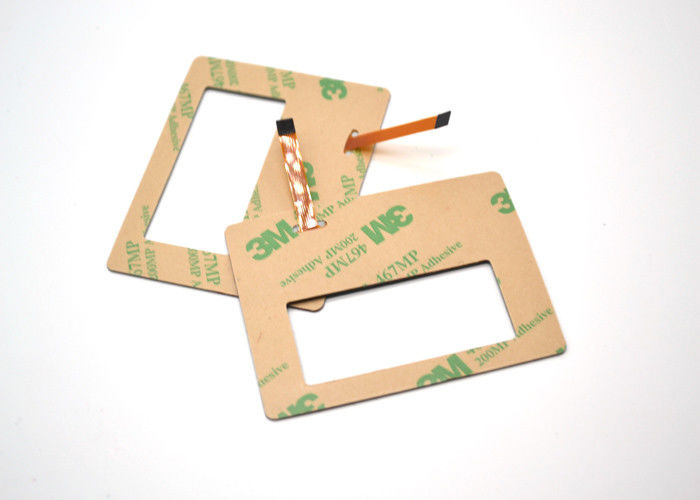

Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window 2





Packing & Delivery


Packing



Payment & Shipping Term


Minimum Order Quantity:10pieces


Packaging Details:PE bag, Carton, Wooden crate


Delivery Time:5-10 days


Payment Terms:T/T West Union Paypal


Supply Ability:100000 pieces per Month



Delivery



the sample time was 1-3days

small order :5-7days

big order:10-20days
Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window 3Four Embossed Button FPC Membrane Switch Keypad With Clear Display Window 4



FAQ



1. How can i get a sample to check your sample?



After price confirmation, you can require for samples to check our quality.


If you need the samples, we can send you the samples by free( depends on the kind and qty



of samples) or you can pay for sample cost, and it can be refundable after order confirmation



when your quantity of the order is bigger than our MOQ.


2. Can you do the design for us?


Yes. We have a professional engineer having rich experience in wire harness & cable assembly



design. Just let us know your ideas and we will help to carry out your ideas into perfect



products. It does not matter if you do not have someone to complete files. Tell us your



detalied SPEC. of products, and we will send you finished drawing for confirmation.



3. What about the lead time for mass production?


Honestly, it depends on the order quantity and the season you place the order. The lead time



of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address



within 4 weeks.



4. what kind of transportation do you offer?



Express such as UPS TNT DHL etc......
