| Place of Origin: | Jiangsu (China jmainland) |
| Brand Name: | Zhongshan |
| Certification: | ROHS ISO9001,2000 |
| Model Number: | ZS-64 |
| Minimum Order Quantity: | 500 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer detail requirements |
| Delivery Time: | within one week after receiving payment |
| Payment Terms: | 30% deposit, the 70% balance after shipment or full payment after air transportation |
| Supply Ability: | 50000 pieces per week |
| Storage:: | -40 °c ~ + 85 °c | Test:: | 100% |
|---|---|---|---|
| Delivery Time: | 1-2 Weeks | Keypad Button: | Aterial: PET/PE/PC/PVC |
| Style: | FPC | Thickness: | 0.3mm |
| High Light: | flexible membrane switch,membrane switch keypad |
||
Four embossed buttons membrane switch with FPCcircuit inside / ZS-64
/ Matte surface in black overlay and white English Words
The main properties of custom design FPC Circuit switch
1. PC /PET as overlay (control panel)
2. Flat keys or tactile type
3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes
5. Water-resistant, dust-proof, gas-proof and scratch-resistant
6. Long life cycle.
Product Description
|
Environmental |
Operating Temperature | -20° to 65° C (-4° to 149° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) | |

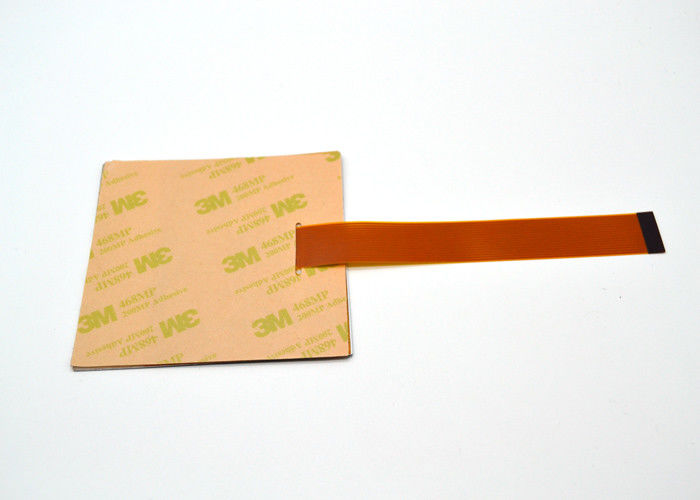

| Seals | 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions. | |
|
Special sealing options are available for wet environments.
|
||
|
Mechanical |
Travel | .007 inches to .015 inches |
| Operating Force | 4oz to 8oz | |
|
Electrical |
Operating Voltage | 30 volts maximum |
| Operating Current | 10 microamps to 100 milliamps, resistive | |
| Closed Circuit Resistance | 100 ohms typical, dependent on size and layout | |
| Open Circuit Resistance | 10 megohms | |
| Operating Power | 1 watt maximum | |
| Circuitry | X-Y matrix or one side common | |
Product Application
