| Place of Origin: | jiangsu(China mainland) |
| Brand Name: | Zhongshan |
| Certification: | ROHSISO9001,2000 |
| Model Number: | ZS-114 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Seal plastic bags with carton boxes or due to customer detail requirements |
| Delivery Time: | within one week after receiving order payment |
| Payment Terms: | 30% deposit,the 70% balance after shipment or full payment before air transportation |
| Supply Ability: | 50000 pieces per week |
| Application: | Home Appliance | Brand Name: | Zhongshan |
|---|---|---|---|
| Place Of Origin: | Jiangsu(China Mainland) | Real: | 3M467MP |

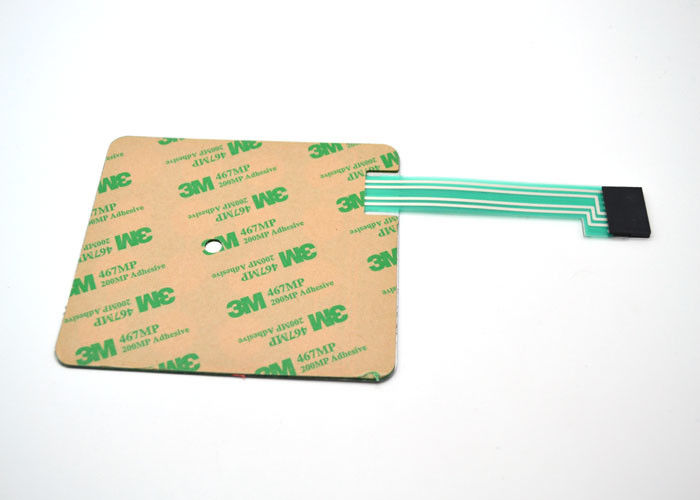

| Real Adhesive: | 3M467MP | Connector: | 1.5mm Male Connector Cable |
| High Light: | pet membrane switch,flexible membrane switch |
||

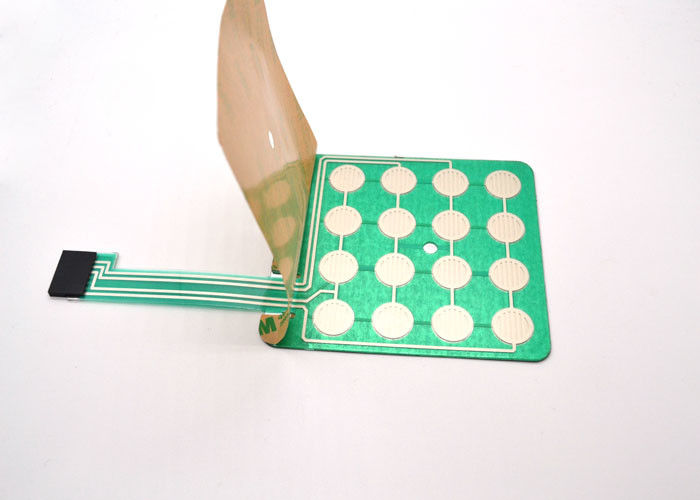

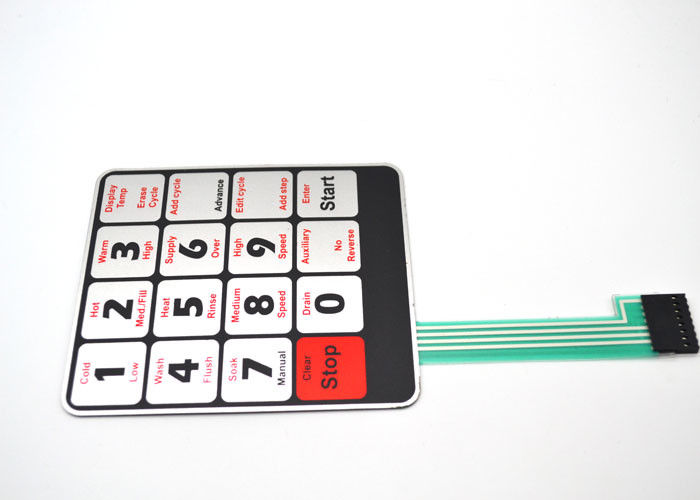

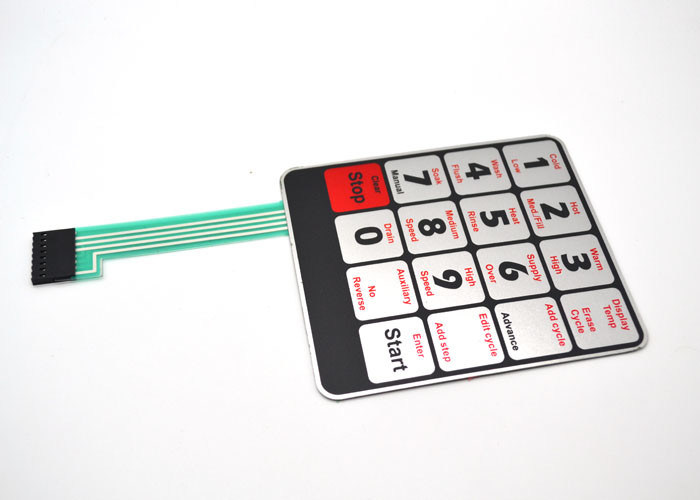

Flat non-tactile without metal dome membrane switch / ZS-114
/application for home appliance
Product Specification
|
Part
|
Ordinary Material | ||
| Graphic Overlay |
Finish
|
Specification | |
| PC |
Gloss
|
0.175/.25/.35/.5 mm thickness | |
|
Matt
|
0.175/.25/.35/.5 mm thickness | ||
| PET |
Fine Texture
|
0.15/.20 mm thickness | |
|
Valet Texture
|
0.15/.20 mm thickness | ||
|
Gloss with Hard
Coat
|
0.18 mm thickness | ||
|
Top Adhesive |
PET Double-sided
Tape
|
0.10/.125mm | |
|
Paper Double-sided
Tape
|
0.10mm | ||
|
Transfer Tape
|
0.06/.12mm | ||
|
Retainer
|
PET | Gloss | 0.125mm |
|
Spacer
|
PET Double-sided Tape | 0.225/.275mm | |
|
Circuit Layer
|
PET | Gloss | 0.125mm |
|
Rear Adhesive |
Paper Double-sided
Tape
|
0.10mm | |
| Transfer Tape | 0.06/.12mm | ||
|
Connector |
Pin | Metal,Male/Female 2.54mm | |
| House | Female,2.54mm | ||
| Electrical Performances | |||
|
Wire Resistance
|
0.5mm width,<1Ω/cm | Rated Current | 25-100mA,0-30V DC |
|
Insulation Resistance
|
>100MΩ 250V DC | Working Voltage | <50V DC |
|
Non-tactile Switch
|
0.1-0.4mm | Tactile Switch | 0.4-1.0mm |
|
Working Life
|
>1 million times | Working Temperature | -40℃-70℃ |
|
Working Humidity
|
40℃,98%RH No Influence | Substrate Voltage | 1500V DC |
|
Feed backTime
|
10ms | Tail Folding | R>1,180 |
Membrane Switch Advantages:
1. Beautiful appearance ,rich and bright in color
2. Small size ,light weight ,good tactility
3. Low cost ,high lifespan
4. Easy to operate ,intuitive ,safe and reliable ,In-house 100%functionally tested
5. Customized specification is available and keys can make different shapes
Our Services
1. Sample order Before mass production
2. We will reply you for your inquiry in 24 hours.
3. After send sample, we will supply tracking number,when you got sample, test sample, if
sample have problem , please contact with us, we will solve problem at the first time.
Packing and Delivery
