Place of Origin:
jiangsu(China mainland)
Brand Name:
Zhongshan
Certification:
ROHSISO9001,2000
Model Number:
Flat Membrane Keyboard
Light Weight Flat Membrane Keyboard , Multi Color Pet Membrane Switch
|
1. Flat Membrane Keyboard Electronic characteristics |
|
|
|
35V (DC), 100mA, 1W |
|
|
10Ω~500Ω (According the trace length and materials) |
|
|
> 100MΩ 250V DC |
|
|
≤ 5ms |
|
|
250VRms (50~60Hz 1min) |
|
|
flat type ≥ 5 million times, tactile type ≥ 1 million times |
|
2. Mechanical Properties |
|
|
|
flat type: 57-284g (2-10 Oz), tactile type: 170~397g (6~14 Oz) |
|
|
flat type: 0.1~0.5mm, tactile type: 0.6~1.5mm |
|
3. Environmental parameters |
|
|
|
|
|
|
-40°C~+85°C |
|
|
40°C, 90% ~95%, 240 hours |
Membrane Switch Main Application:
• Information application products,
• Remote control
• telecommunication equipment
• OA equipment
• Household appliance
• medical instruments
• measuring instruments
• toys
• ...etc
Environmental:
• Storage Temperature: -40°C (-40°F) to +70°C (158°F).
• Storage Altitude: Sea level to 35,000 feet
• Operating Temperature and Altitude: ordinary -30°C (-30°F) to +75°C (170°F),but can
according to customer's requests.
• Humidity: No delamination after 24 hours at 80°C and 90%RH

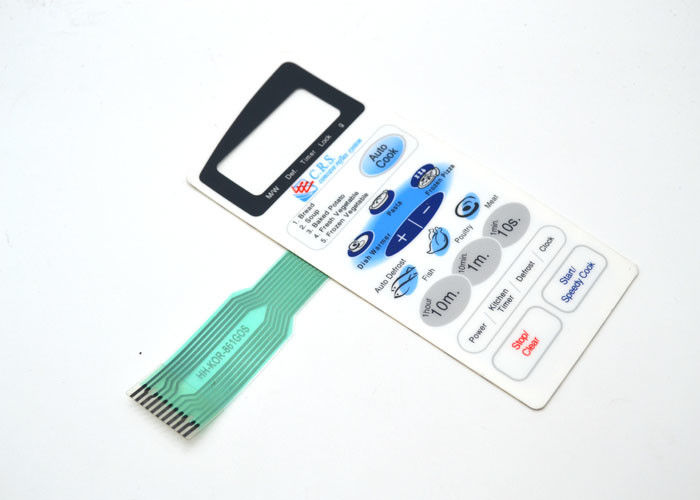

Product show:
