Square Embossed Buttons Membrane Switch Panel Keypad For Medical Instruments

Square Embossed Buttons Membrane Switch Panel Keypad For Medical Instruments

  • Square Embossed Buttons Membrane Switch Panel Keypad For Medical Instruments
  • Square Embossed Buttons Membrane Switch Panel Keypad For Medical Instruments
  • Square Embossed Buttons Membrane Switch Panel Keypad For Medical Instruments
Square Embossed Buttons Membrane Switch Panel Keypad For Medical Instruments
Product Details:
Place of Origin: Jiangsu,(China mainland)
Brand Name: Zhongshan Membrane Switch
Certification: ISO9001
Model Number: ZS-27
Payment & Shipping Terms:
Minimum Order Quantity: 100pieces
Price: negotiation
Packaging Details: Seal plastic(inner) carton boxes (outer) or due to customer requirements
Delivery Time: within one week after payment
Payment Terms: 30%deposit, the 70% balance after shipment
Supply Ability: 50000pieces per week
Contact Now
Detailed Product Description
Application: Medical Insturments Size: 340mm*140mm
Thickness: 0.3mm Color Matching: Pantone Or RAL Code
Material: Pet Type: Embossed Tatile
High Light:

membrane panel switch

,

custom membrane switch panel

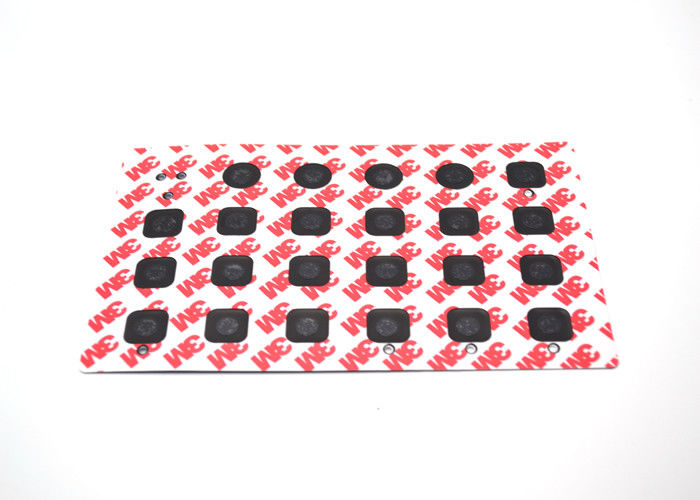

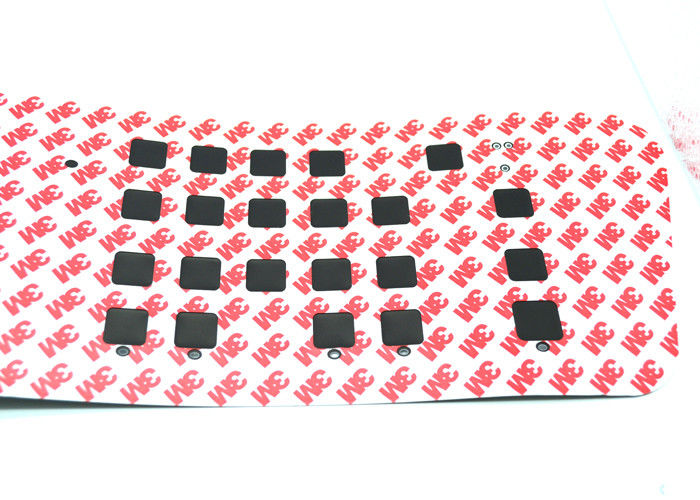

Square embossed buttons graphic overlay tactile membrane switch panel



/ ZS-27 / application for medical instruments





Features:





1) Light weight,compact structure,good-looking apperance ,and long service life.



2) Outstanding damp-proof and dust-proof performance ,and good shock resistance.







Specifications:





Membrane Panel


1) water proof,


2) moisture proof,


3) temperature enduring,


4) solvent resist and good appearance.





QC Standard





Overlay



Printing



Spelling mistake



Not allowed



Incorrect Font



Not allowed



Dimension error



>0.2mm is Not allowed
Color



Less than 2 levels with the specified Pantone color





Dot impurities



Diameter less than 0.2mm



Distance between two impurities is more than



50mm



The number of impurities is less than 2 within



100cm



Linear impurities



Width is less than 0.2mm,length is less



0.4mm in panel surface.Distance between two



impurities is more than 50mm



Window impurities



Diameter is less than 0.2mm in the center of



the window







Membrane panel Performance indicators:




1. Electronic characteristics




    Circuit rating: 35V (DC), 100mA, 1W




    Contact resistance: 10Ω--500Ω (According the trace length and materials to comfirm)




    Insulation resistance:> 100MΩ 250V DC




    Contact bounce: ≤ 5ms Dielectric withstand:250VRms (50-60Hz 1min)




    Life expectancy: flat type ≥ 5 million times, tactile type: ≥ 1 million times




2. Mechanical Properties Actuation force:flat type 57-284g (2-10 Oz), tactile type 170-397g





    (6-14 Oz) Switch stroke: flat type 0.1-0.5mm, tactile type 0.6-1.5mm




3. Environmental parameters




    Operating Temperature: -40 oC- +80oC , Storage temperature: -40oC - +85oC




    Humidity: 40oC , 90% -95%, 240 hours





Membrane Panel Primary Competitive Advantages:




1. Prompt Delivery.




2. Quality Control (IQC, On line Inspection, OQC, ISO9001 and 5S).




3. Reputation.




4. Service.




5. Small Orders Accepted.




6. Superior R&D Background (continuously new product development and current product





    (improvement).




7. Customize Design / Production (OEM/ODM business and flexible designs for customers'





    special requirements).
