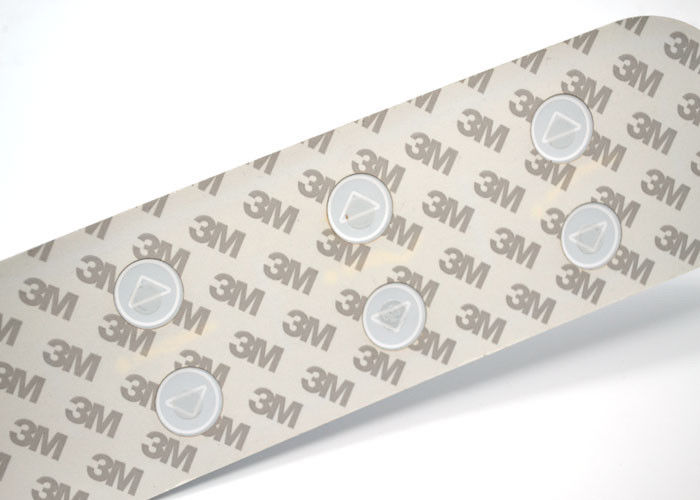

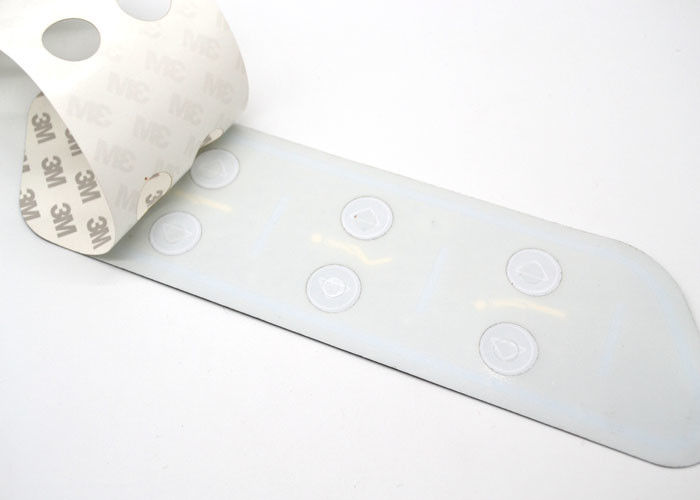

Flat tactile medical instruments membrane switch panel / ZS-110 /
Smarting appearance and light weight
Feature:
1. PC /PET as overlay (control panel)
2. Flat keys or tactile type
3. Embossed button with good tactile feel
4. Pre-assemble with or without metal domes
5. Water-resistant, dust-proof, gas-proof and scratch-resistant
6. Long life cycle
Technology
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:-20°c to +80°c
Storage temperature: Flat/Metal dome:-40°cto +80°c
Life expectancy Flat type≥5,000,000 times Tactile type≥1,000,000 times
Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actuation force tolerance: +/- 20 to 45g
Tactile ratio: FC > 40%
Operating humidity: up to 95% RH
Female, male connector, solder pins and heat seal connectors are available
|
Electronic
Characteristic
|
<35V ( DC ) <100mA 1W
|
Life Expectancy
|
flat type ≥ 500 million times, tactile type: ≥ 100 million times
|
|
Contact
Resistance
|
10Ω--500Ω (According the trace length and materials to confirm)
|
Operation Temperature
|
-40 °c ~ + 80 °c
|
|
Insulating
Impedance
|
>100MΩ 250V DC
|
Stock Temperature
|
-40 °c ~ + 85 °c
|
|
Resistance of
the wire
|
<1 Ω/cm width 1.27mm
|
Humidity
|
+ 40 °c 90 % ~ 95% 240 hour
|
|
Operation
Force
|
flat type 57-284g (2-10 Oz), tactile
type 170-397g (6-14 Oz)
|
Switch stroke
|
flat type 0.1-0.5mm, tactile type
0.6-1.5mm
|
1. OEM Order welcome: Product, Package
2. Sample order Before mass production
3. We will reply you for your inquiry in 24 hours.
4.After send sample, we will supply tracking number,when you got sample, test sample, if
sample have problem , please contact with us, we will solve problem at the first time,
Membrane Panel Primary Competitive Advantages:
1. Prompt Delivery.
2. Quality Control (IQC, On line Inspection, OQC, ISO9001 and 5S).
3. Reputation.
4. Service.
5. Small Orders Accepted.
6. Superior R&D Background (continuously new product development and current product
(improvement).
7. Customize Design / Production (OEM/ODM business and flexible designs for customers'
special requirements).
