PET / PVC Custom Membrane Switch Panel Flat Non Tactile For Industrial Equipment

PET / PVC Custom Membrane Switch Panel Flat Non Tactile For Industrial Equipment

  • PET / PVC Custom Membrane Switch Panel Flat Non Tactile For Industrial Equipment
  • PET / PVC Custom Membrane Switch Panel Flat Non Tactile For Industrial Equipment
  • PET / PVC Custom Membrane Switch Panel Flat Non Tactile For Industrial Equipment
PET / PVC Custom Membrane Switch Panel Flat Non Tactile For Industrial Equipment
Product Details:
Place of Origin: jiangsu(China mainland)
Brand Name: Zhongshan
Certification: ROHSISO9001,2000
Model Number: ZS-128
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one wee after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Material: PET / PVC Brand Name: Zhongshan
Application: Industrial Equipment Quality: 100% Tested
Current Contact: 2-24V Back Adhesive: 3m55230
Place Of Origin: Jiangsu(China Mainland)
High Light:

membrane control panel

,

membrane panel switch

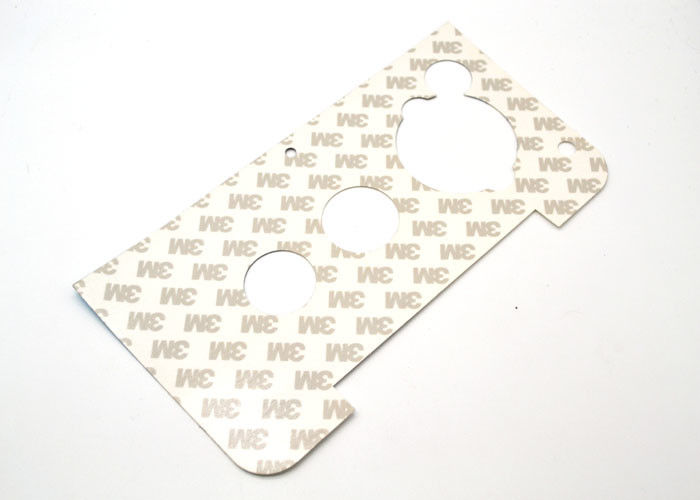

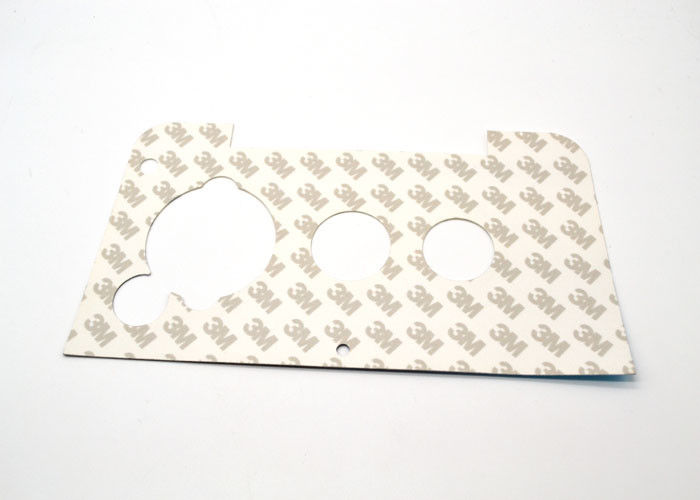

Flat non-tactile membrane switch panel / ZS-128 / WITH 3M55230 back

adhesive and mostly exported to Italy



Product Description




item


Flat non-tactile membrane switch panel
Material


Polyesters : Autotype :AutoFlex EBG/A (Gloss and

Antiglare);Autotex (Textured)Autotex UV/XE

Polycarbonates: GE Products:8010;8B35;Lexan( Hard Coated

with various Gloss Levels )


Thickness


002 to .060 in


Finishes


Glossy, frosted or matte surface


Printing


Silk-screen printing and digital print


Resistances


Heat (-40 to 275 °F)


Actuation Life


200,000 (Polycarbonate)
2,000,000 (Autotex)


SelectiveTexturing


LCD Displays ;LED Windows


Maximum size



a.Length*Width: Digital: 120" * 96"; Screen Print : 46" *30"

b.Embossing Depth):.020 to .040 in


Adhesive


3M467( .002 )/3M468( .005 )/3M9448


Tolerance (+/-)


Print to Cut: .010 in; Dimensions: .010 in


Industry Standards


ISO 9001:2000



Graphics File

Formats


CAD/CDR/AI


Feature:

a. Embossed keys, windows and graphics

b. Integral surface mounts LEDs

c. Crystal clear LCDLED windows

d. Non-tactile or polyestermetal dome tactile

e. Typical life expectancy exceeds 1,000,000 cycles

f. Withstands operating temperature range of -20 degree Celsius to 70 degree Celsius

g. Contact resistance from 50 to 200 ohm according to custom design.

h. Functional testing.

i. Waterproof & anti air design.

PET / PVC Custom Membrane Switch Panel Flat Non Tactile For Industrial Equipment 0PET / PVC Custom Membrane Switch Panel Flat Non Tactile For Industrial Equipment 1

Price question:

The products in the website belong to our customers' custom-made products and patterns

only for buyer reference. So the specific price is based on the customer's custom-made panel

material, size, quantity, shape, color, and adhesive.

We can help you design a custom capacitive touch membrane switch panel or your

application, and work with your engineering drawings to ensure a custom fit.

Vector-based files ( Adobe Illustrator, Coreldraw, PDF)

Engineering files (AutoCAD, PRO-E, STP)

Raster-based files (Adobe Photoshop, Hi-Res JPEG,TIFF)


Order Process
PET / PVC Custom Membrane Switch Panel Flat Non Tactile For Industrial Equipment 2

Payment:

Before making samples, you pay mold and sample fees.

Before mass production, you pay the order in advance 30%, the balance before the delivery

Delivery time:

Sample: after receiving your confirming the mold and paying for the sample fee, within 3

working days to provide effect chart, drawing confirmation, within 7 working days to provide

samples.

Mass production: mass production in accordance with the product process and quantity,

normal payment confirmation within 7-10 working days.
