Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive

Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive

  • Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive
  • Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive
  • Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive
  • Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive
  • Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive
Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive
Product Details:
Place of Origin: Jiangsu(China mainland)
Brand Name: Zhongshan
Certification: rohsiso9001,2000
Model Number: ZS-138
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: negotiation
Packaging Details: Seal plastic bags with carton boxes or due to customer detail requirements
Delivery Time: within one week after receiving order payment
Payment Terms: 30% deposit, the 70% balance after shipment or full payment before air transportation
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Material: Pet Color: Black And Green
Back Adhesive: 3M55230 Brand Name: Zhongshan
Model Name: 3M138 Quality: 100% Tested
High Light:

membrane control panel

,

custom membrane switch panel

Medical instruments membrane switch panel /ZS-138 / color printing on



the surface overlay and 3M55230 real adhesive







Technical Specifications

Environmental Operating Temperature -20° to 65° C (-4° to 149° F)
Storage Temperature -40° to 85° C (-40° to 185° F)
Seals 3M permanent acrylic adhesive resists against dust, water, oil and moisture conditions.

Special sealing options are available for wet environments.



Mechanical Travel .007 inches to .015 inches
Operating Force 4oz to 8oz
Electrical Operating Voltage 30 volts maximum
Operating Current 10 microamps to 100 milliamps, resistive
Closed Circuit Resistance 100 ohms typical, dependent on size and layout
Open Circuit Resistance 10 megohms
Operating Power 1 watt maximum
Circuitry X-Y matrix or one side common

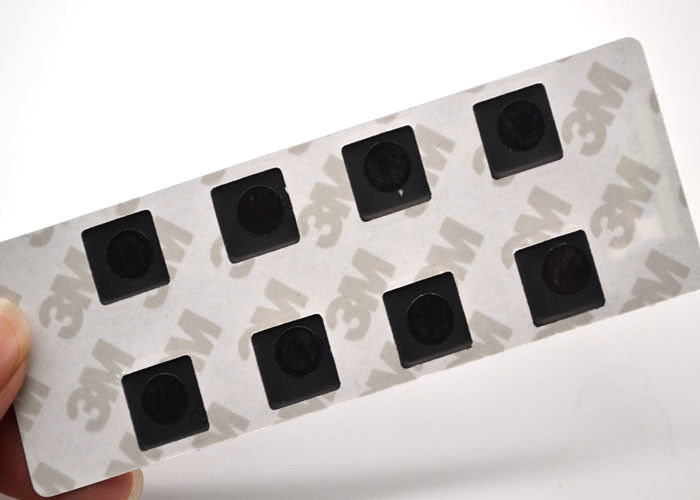

Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive 0

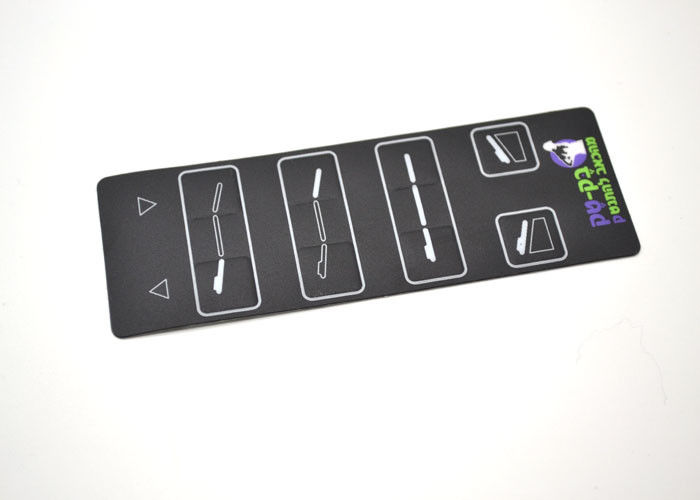

Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive 1



Manufacturing process

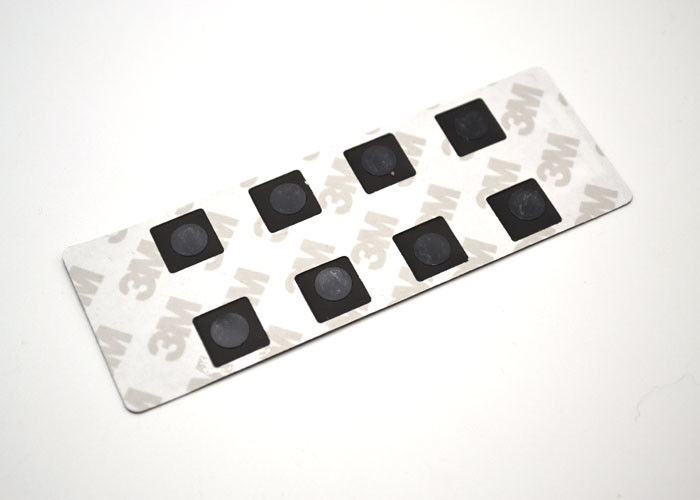

Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive 2





FAQ


1. How to order membrane switch?



You can tell me your size,color,material,surface,finish,rear adhesive, etc. You'd



better send me the drawing together with panton color or RAL color.



2. what is the delievery time?



The sample time is about 7-10days.The quantity order would take 1-2 weeks. For



complicated product should take 1 more week.



3. Shall we supply samples?



Yes, but freight collect.Most of the item is customzied order.so it need molding



charge.



4. What is our payment term?



As the client need, we mainly receive trade assurance,TT,west union,PayPal etc.

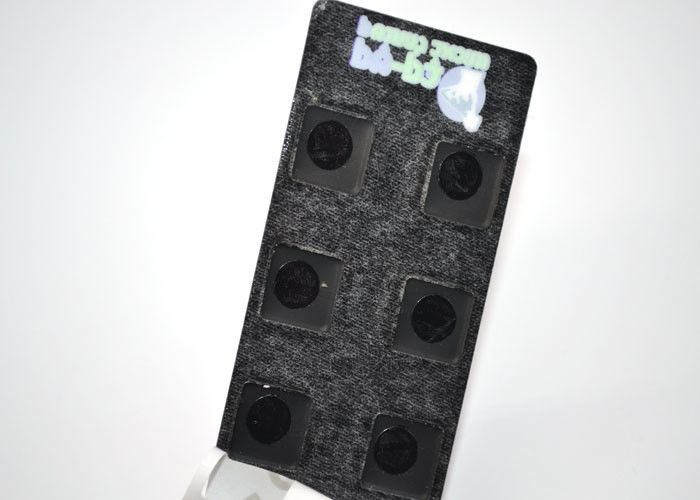

Water Resistant PET Membrane Control Panel With 3M55230 Real Adhesive 3
