|Place of Origin:||Jiangsu, China (Mainland)|
|Brand Name:||Zhongshan Membrane Switch|
|Minimum Order Quantity:||100pieces|
|Packaging Details:||Packaging for products is paper carton( outer) and plastic bubble bag (inner).Or per your needs.Special requirement accepted.|
|Delivery Time:||within one week after payment|
|Payment Terms:||30%deposit,the 70%balance after shipment or full payment after air transportation|
|Supply Ability:||50000pieces per week|
|Material:||Polyester(PET) And Polycarbonate(PC).||Dimention:||160mm*94mm|
|Color:||Black, Blur, White, Red||Circuit Resistance:||<1Ω/cm|
|Real Adhesive:||3M467MP||Voltage Rating:||2-24V|
Flat Face Membrane Switch Keypad,
24V Membrane Switch Keypad,
Lightweight Membrane Switch Keypad

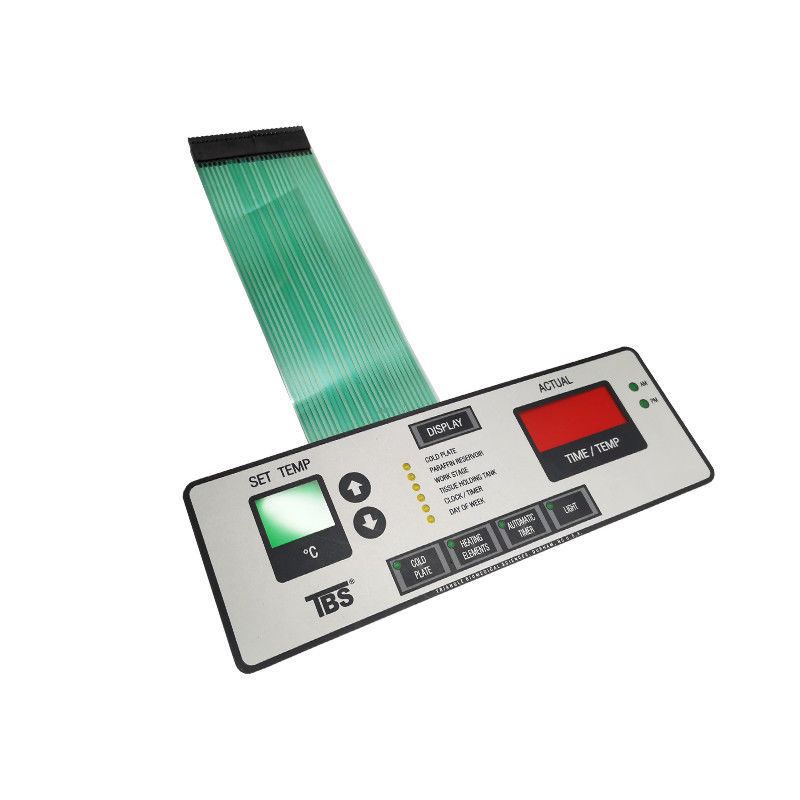

Flat non-tactile face-plate / ZS-03 / printing 4 colors on the surface /
Used for the Power Suppliers
This is a face-plate with non-tactile on the surface,4 colors printing on the surface.
it is used for the power suppliers controller / exported to Canda .
the characteristtic of this kind face-plate is small in size, light weight,reliable in structure.
LED, metal dome, connector and circuit, all these can be designed and made according to customer requirements.
1.raises the surface of graphic overlay to emphasize the active key area,upper circuit can be embossed to insert metal domes
2.Embossed type: Pillow emboss, Dome emboss, Frame emboss
Pantone and RALcolor matching system.
1.For a tactile response and indicate the location of switches
2. Tactile Keys: metal domes or poly domes
3. Non-tactile keys: flat button, printed silver spot on the circuit
screen printing or digital printing.
1. Silver printed conductive inks
2. Copper etched circuit /Polyimide Kapton circuit ( FPC)
3.PCB circcuit board
1.Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch
2. Female connector with 2.54MM pitch
1. Over 17 years of experience in membrane switch design and manufacturing.
2. Certified to ISO 9001 and SGS.
3.Manufacturing and design engineer is enough. They accounts for above ten
percent of the total.
Over 13 Years in the Membrane Switch Industry,Founded in 2002, Nanjing Zhongshan
Membrane Switch is a professional membrane switch manufacturer in China. Our
professional operation can ensure you of quality products supported by mechanical,
electronic and control automation. Based on our good abilities in technology and production
workmanship, our products are strictly checked by our quality supervision department. For
your added assurance, our plants are ISO 9001:2000-certified and our products are
compliant with the RoHS Directive..
“Our 3,000sqm factory houses three production lines furnished with advanced equipment to
manufacture up to 6 million pieces monthly. We are serving customers in Asia, the US,
Europe, Australia and other areas worldwide.
